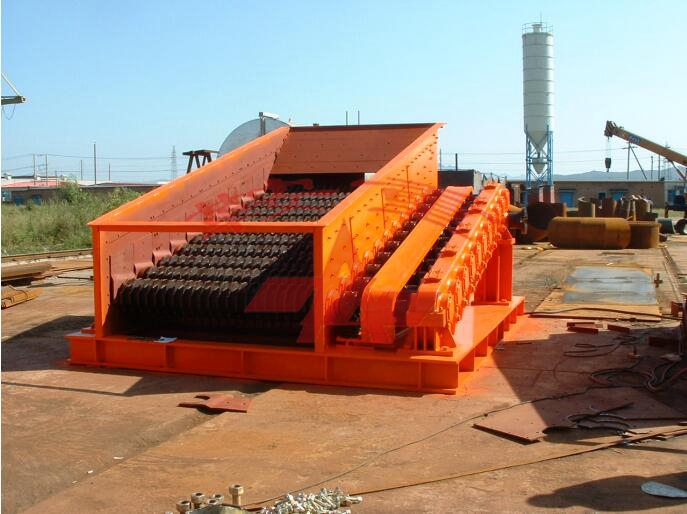

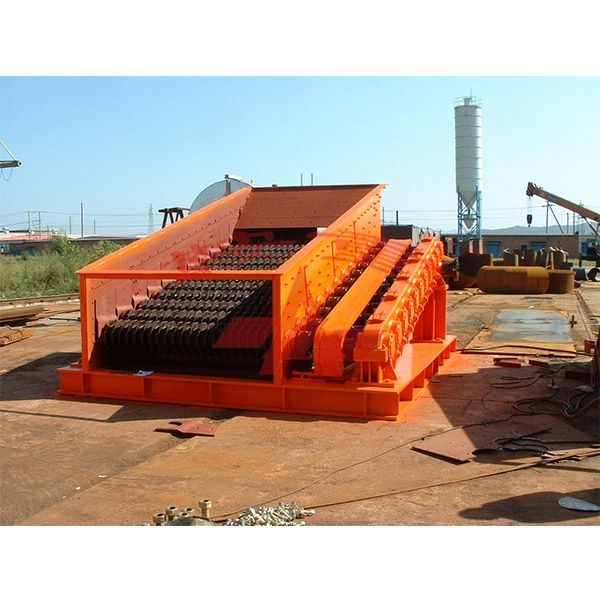

Tooth roller screen

Share:

Tooth roller roller screen is a kind of mineral classification and screening equipment that uses the screen shaft to drive multiple groups of screen discs to rotate, and the materials given to the screen surface during transportation, the block material larger than the opening size passes through the screen disc, and the material smaller than the opening size falls under the screen panel, so as to realize the classification of materials according to different particle size levels.

product details

Industry solutions:

Tooth roller roller screen is mainly suitable for the screening of bulk materials, the feed size can be any level from 0 mm to 450mm, the opening size can be any level from 15mm to 200mm, and the maximum capacity can reach 2500t/h. It is our patented product.

This equipment is suitable for classifying materials in coal mines, coal preparation plants, mineral processing plants, cement plants, power plants, quarries, sand plants and ports and terminals, etc., and is beneficial to screening wet and sticky materials.


lThe screen disc is a tooth roller type uneven and convex staggered arrangement, with large capacity and strong overload resistance.

lIt adopts one-piece structure bearing seat and chain transmission, which runs smoothly, reliably, has low failure rate, and is easy to maintain and repair.

lThe screen material has a single forward movement along the screen surface, which has high screening efficiency and is not easy to be crushed.

lThe overall height of the screen surface is lower than that of other kinds of screening machines, which saves space and is easy to arrange.

lSmall vibration, low noise, large processing capacity, the maximum can reach 2500 tons/hour.

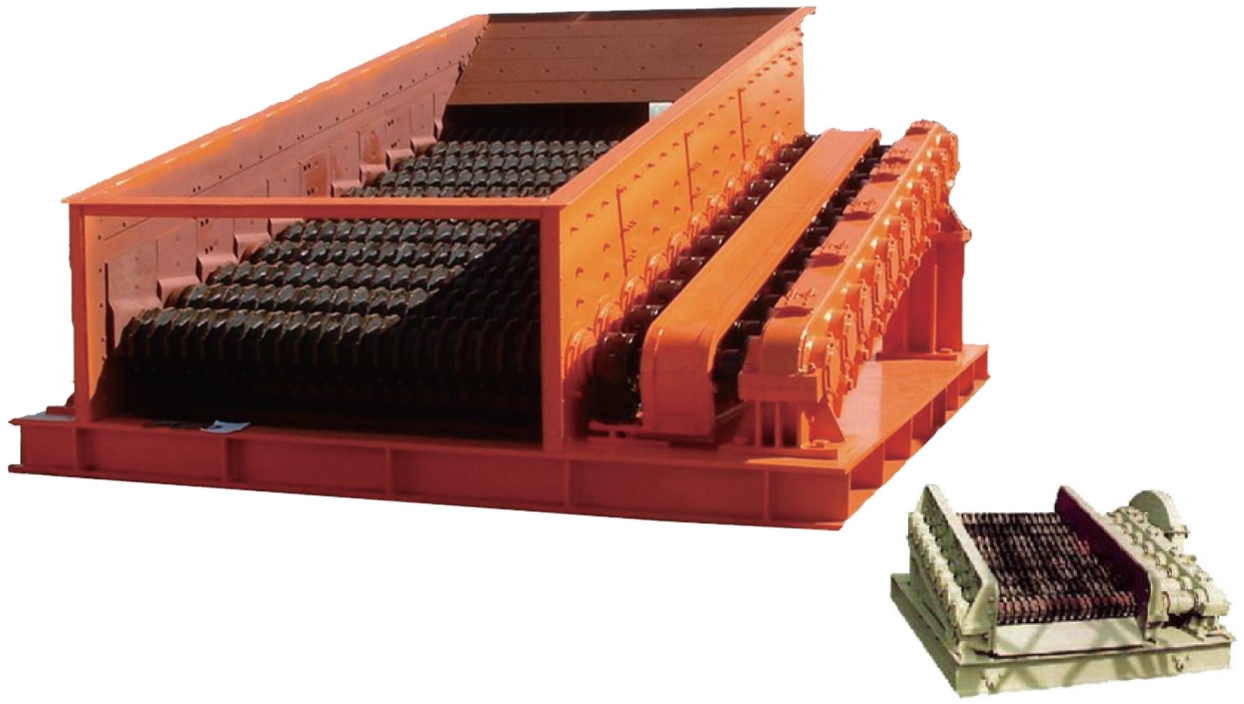

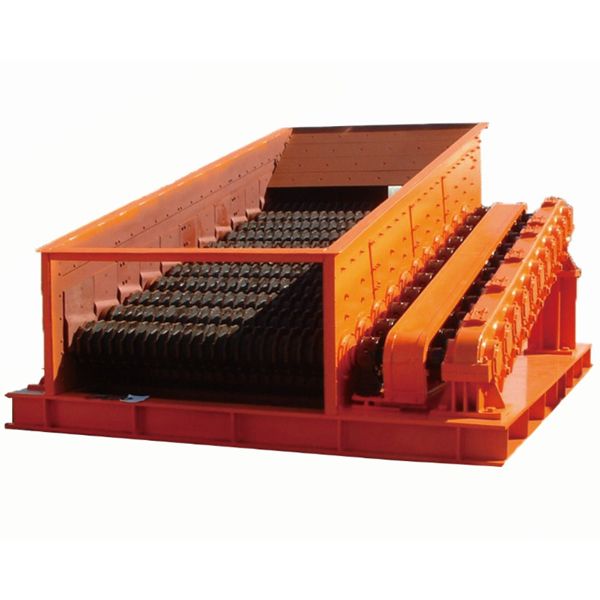

Tooth roller screen


                    Technical Parameters

Screen model

Screen width(mm)

Opening size(mm)

Capacity (t/h)

Number of axles

Power(Kw)

GS1009

1000

55x65

500

9

9X1.5

GS1012

1000

55x65

700

12

12X1.5

GS1409

1400

60x80

1000

9

9X4

GS1412

1400

60x80

1200

12

12X4

GS1415

1400

60x80

1500

15

15X4

GS1809

1800

50x50

1500

9

9X5.5

GS1812

1800

60x80

1500

12

12X7.5

GS1815

1800

60x80

2000

15

15X7.5

GS1818

1800

60x80

2500

18

18X7.5

GS2214

2200

50x60

1500

14

14X11

GS2218

2200

60x60

3000

18

18X11
