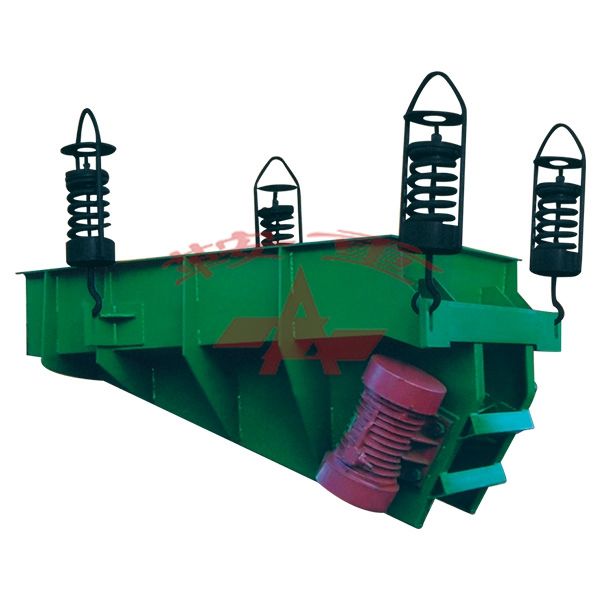

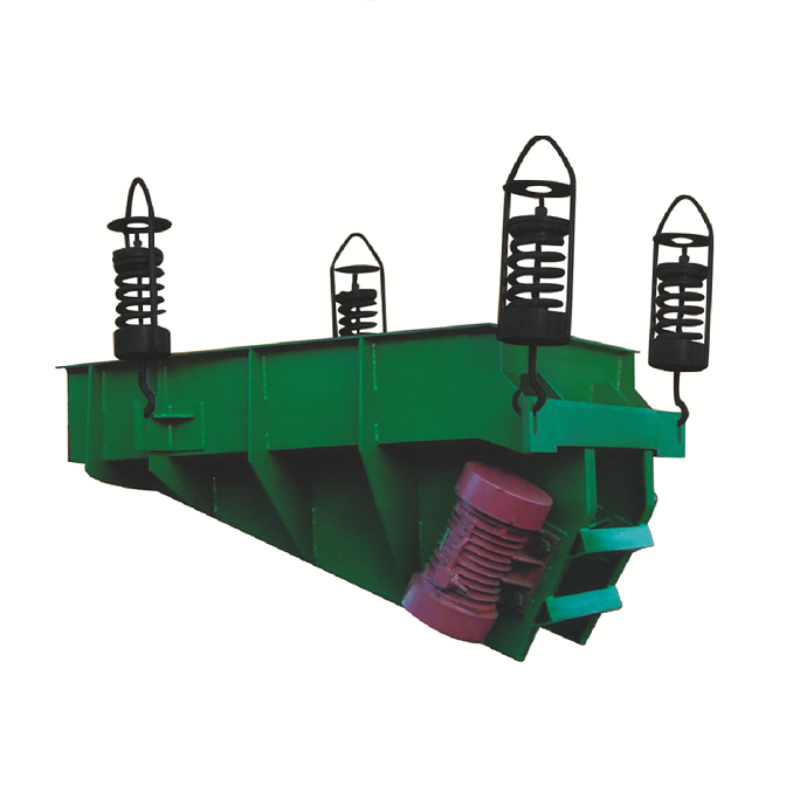

GZG vibrating feeder

Share:

GZG (ZF) series inertial vibrating feeder is a kind of vibrating feeding equipment. This feeder is mainly used in mining, metallurgy, coal, building materials, chemical industry, electric power, grain and other industries. Feeding materials to crushers, belt conveyors, vibrating screens, magnetic separators, trucks, etc.Generally, it is installed under the material bin, and it can be loaded and started. The feeder has the advantages of simple structure, small size, light weight, low energy consumption, low noise, stable and reliable operation, and convenient installation and maintenance.

product details

Industry solutions:

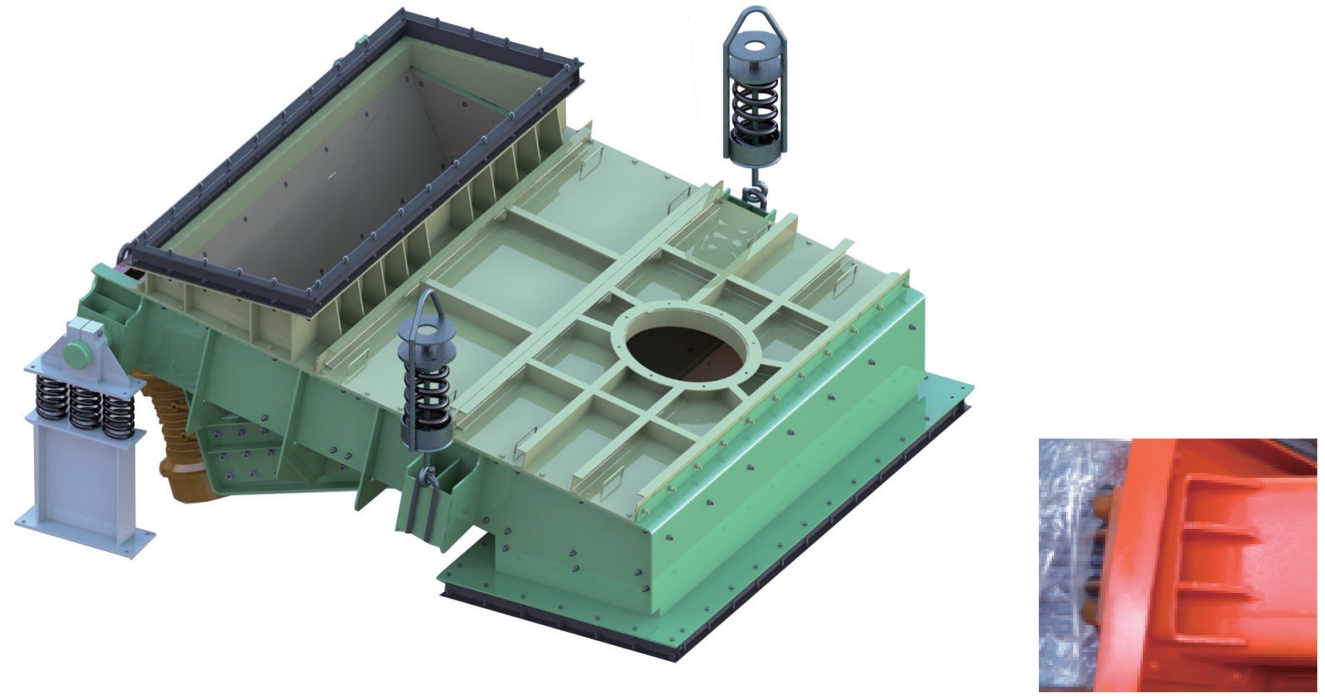

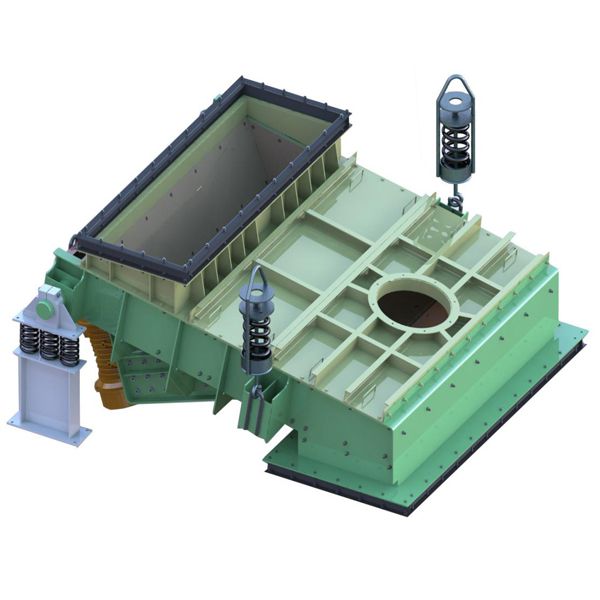

lThe distance in the width direction of the hanging points on both sides of the feeder is designed to be large enough to ensure that the hanging is installed vertically. The vertically installed hanging has a longer life than the hanging installed at an angle.

lThe installation method is designed according to the user's requirements, and the installation methods are: full-seat type, front-hung and rear-seat type, and full-hung type.

lThe plates are rolled from Ansteel. The shape cutting and positioning holes of the steel plate are completed by high-precision CNC cutting machines to ensure the accuracy of the shape and drilling position. Reinforcing ribs or protective plates are reasonably arranged in the areas where the side plates are subject to greater stress to effectively increase the strength of the side plates .

lThe synchronization effect and vibration stability of the vibration motor depend on 2 reasons:

n The vibration motor adopts Shanghai Shangzhen or OLi Wolong.

n The vibration motor mounting beam is processed using a CNC gantry-type vertical five-sided machining center. The two end plates and the vibration motor base plate are clamped and positioned at one time, and all the holes and processing surfaces on the vibrator mounting beam are processed with high precision at one time.



GZG vibrating feeder



                           Technical Parameters

Feeder model

Feed chute size(mm)

Power(Kw)

GZG0410

400×1010

2X0.37

GZG0613

600×1390

2X1.5

GZG0818

800×1800

2X1.85

GZG1018

1000×1800

2X2.2

GZG1318

1300×1800

2X3

GZG1518

1500×1800

2X3.7

GZG1822

1800×2200

2X5.5

GZG2420

2400×2200

2X7.5
