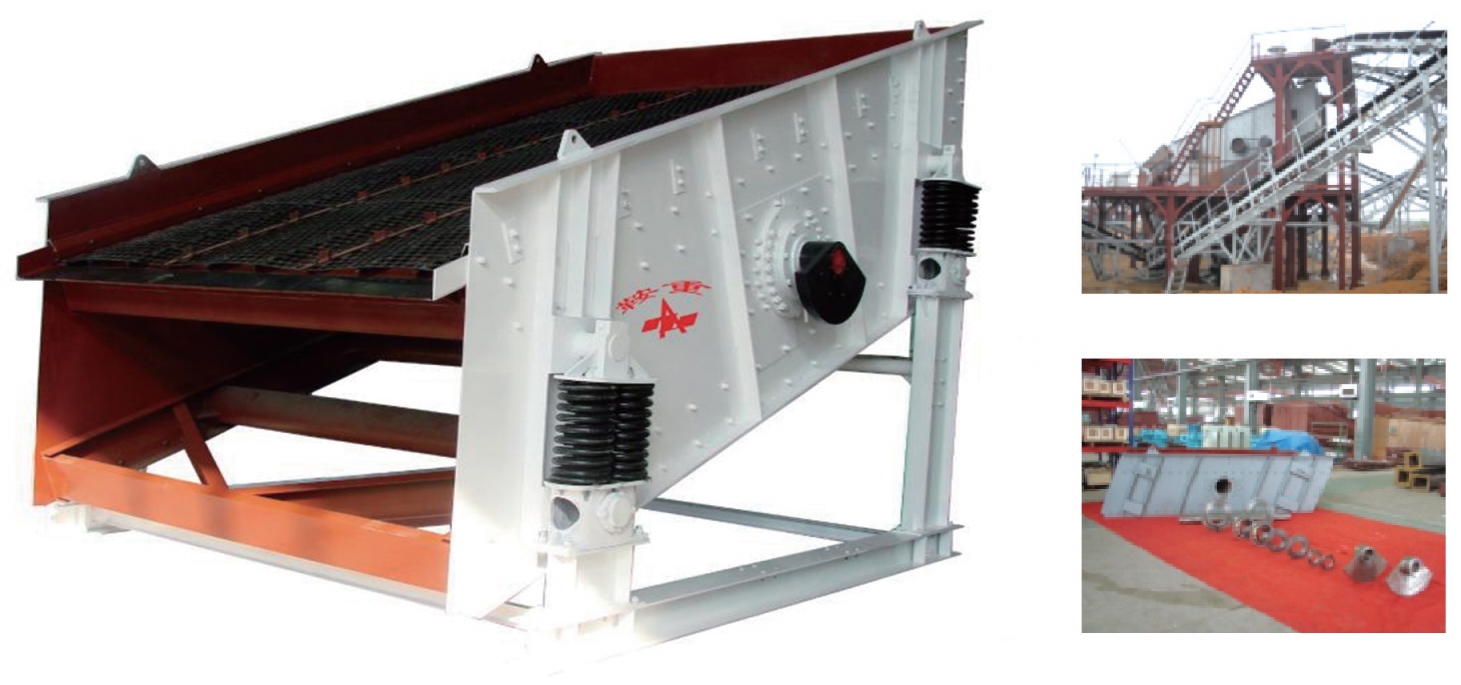

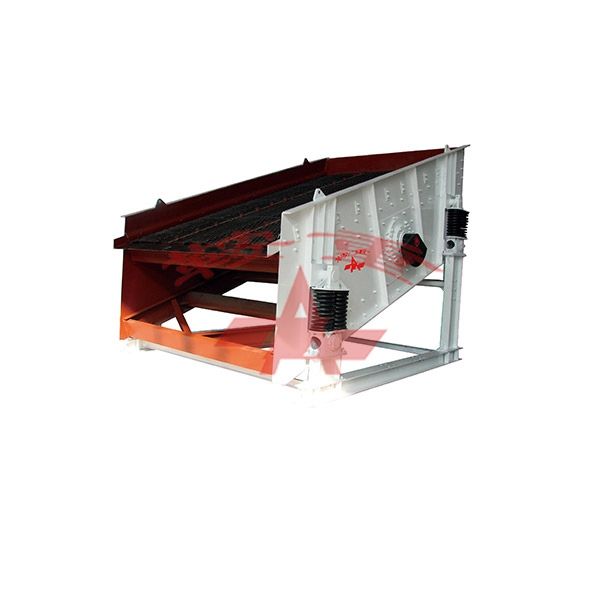

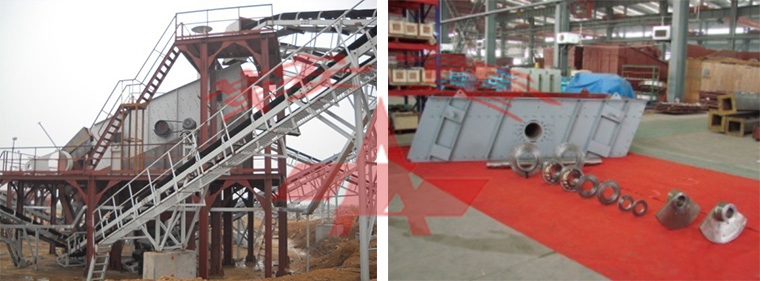

Single shaft circular vibrating screen is mainly used for pre-screening and inspection screening of ore crushing closed circuit screening processes in major mines and mineral processing plants. It is also used for particle size classification of sand and stone aggregates, as well as for raw coal particle size classification operations in coal washing plants. The screen surface width is ≤ 2.4m.

product details

Industry solutions:

lThe vibration parameters of the screen have reached the international advanced level: double amplitude 2A=9-12mm; Vibrating frequency n=730-850r/min; The vibration intensity reaches 3.5g-4.5g; High screening efficiency and large capacity compared to the previous year

lThe vibrator is the combined vibrator with eccentric shaft and eccentric block. It is installed on the screen frame through the shaft guard tube and arranged in two groups in parallel. The structure is firm and at the same time, and can enhance the rigidity of the screen frame; The bearing arrangement of the screen is equal and the exciting force is large; Strong bearing capacity.

lThe bearing is lubricated by thin oil, and the oil film is fully lubricated, with relatively long service life and convenient maintenance. The sealing method adopts labyrinth, rubber seal and conical face combination seal, which makes the oil seal more tight.

lThe vibrator is installed and arranged in a scientific position and fixed on the center of gravity position of the screen box. The screen runs smoothly. The motion track at each point is a positive circle. The material moves at a uniform speed on the screen surface. The overall force of the screen frame is uniform. The principle of two shafts forced synchronization ensures stable and reliable operation. The motion track of the amplitude at each point of the screen is completely consistent. The material runs at a uniform speed and has a high thorough screening rate.

lThe support structure of the upper and lower layer screen panels of the screen frame adopts the integral bracket, which makes the overall rigidity of the screen frame stronger, impact resistant, and large supporting capacity to meet the requirements of large capacity, large particle size materials, and heavy load operation.

lVibrators are arranged between the upper and lower layer screen panels. The space is spacious (500-800mm), which is convenient for vibrator maintenance and screen mesh replacement.



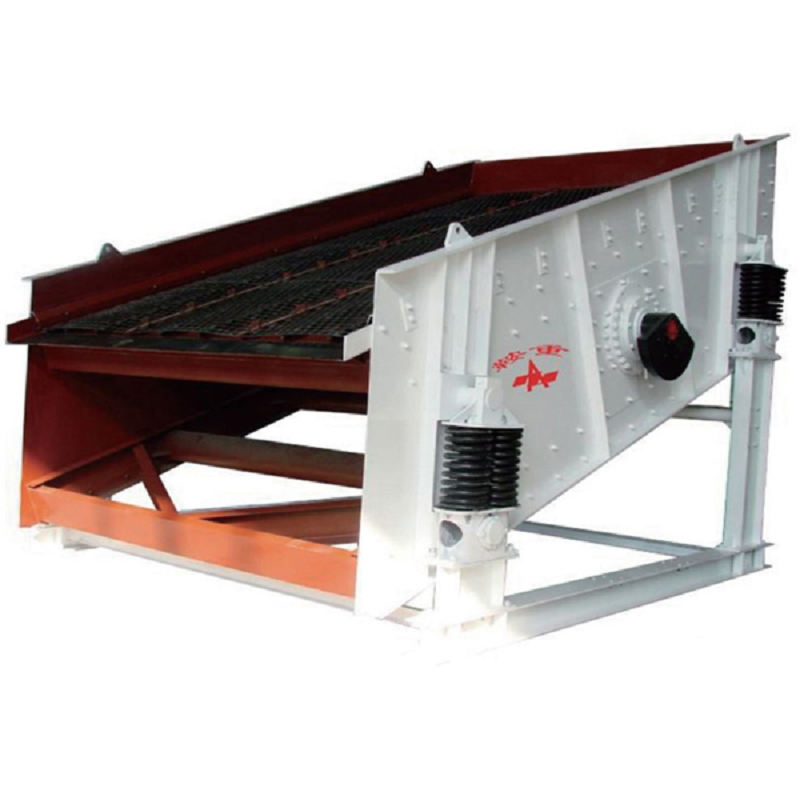

Single-shaft circular screen

                         Technical Parameters

Screen model

Layer No.

Screening surface size(mm)

Screen area(m²)

Opening size(mm)

Power(Kw)

YAg1236

1

1225×3660

4.3

6~50

11

YAg1530

1

1530×3050

4.5

6~50

11

YAg1536

1

1530×3660

5.4

6~50

11

YAg1542

1

1530×4270

6.3

6~50

11

YAg1548

1

1530x4880

7.2

6~50

15

YAg1836

1

1835×3660

6.5

6~50

11

YAg1842

1

1835×4270

7.6

6~50

15

YAg1848

1

1835×4880

8.6

6~50

15

YAg2148

1

2140×4880

10.1

6~50

18.5

YAg2160

1

2140×6100

12.6

6~50

18.5

YAg2448

1

2445×4880

11.5

6~50

18.5

YAg2460

1

2445×6100

14.4

6~50

30

2YAg1236

2

1225×3660

4.3X2

6~50

11

2YAg1530

2

1530×3050

4.5X2

6~50

11

2YAg1536

2

1530×3660

5.4 X2

6~50

11

2YAg1542

2

1530×4270

6.3 X2

6~50

15

2YAg1548

2

1530x4880

7.2 X2

6~50

15

2YAg1836

2

1835×3660

6.5 X2

6~50

15

2YAg1842

2

1835×4270

7.6 X2

6~50

15

2YAg1848

2

1835×4880

8.6 X2

6~50

15

2YAg2148

2

2140×4880

10.1 X2

6~50

22

2YAg2160

2

2140×6100

12.6 X2

6~50

22

2YAg2448

2

2445×4880

11.5 X2

6~50

30

2YAg2460

2

2445×6100

14.4 X2

6~50

30

YAHg1236

1

1225×3660

4.3

30~150

11

YAHg1530

1

1530×3050

4.5

30~150

11

YAHg1536

1

1530×3660

5.4

30~150

11

YAHg1542

1

1530×4270

6.3

30~150

15

YAHg1548

1

1530x4880

7.2

30~150

15

YAHg1836

1

1835×3660

6.5

30~150

11

YAHg1842

1

1835×4270

7.6

30~150

15

YAHg1848

1

1835×4880

8.6

30~150

15

YAHg2148

1

2140×4880

10.1

30~150

18.5

YAHg2160

1

2140×6100

12.6

30~150

30

YAHg2448

1

2445×4880

11.5

30~150

30

YAHg2460

1

2445×6100

14.4

30~150

30

2YAHg1236

2

1225×3660

4.3 X2

30~150

11

2YAHg1530

2

1530×3050

4.5 X2

30~150

11

2YAHg1536

2

1530×3660

5.4 X2

30~150

15

2YAHg1542

2

1530×4270

6.3 X2

30~150

15

2YAHg1548

2

1530x4880

7.2 X2

30~150

15

2YAHg1836

2

1835×3660

6.5 X2

30~150

15

2YAHg1842

2

1835×4270

7.6 X2

30~150

15

2YAHg1848

2

1835×4880

8.6 X2

30~150

15

2YAHg2148

2

2140×4880

10.1 X2

30~150

22

2YAHg2160

2

2140×6100

12.6 X2

30~150

30

2YAHg2448

2

2445×4880

11.5 X2

30~150

30

2YAHg2460

2

2445×6100

14.4 X2

30~150

30

3YAg1236

3

1225×3660

4.3 X3

6~50

11

3YAg1530

3

1530×3050

4.5X3

6~50

11

3YAg1536

3

1530×3660

5.4X3

6~50

11

3YAg1542

3

1530×4270

6.3 X3

6~50

15

3YAg1548

3

1530x4880

7.2 X3

6~50

22

3YAg1848

3

1835×4880

8.6 X3

6~50

22

3YAg2160

3

2140×6100

12.6 X3

6~50

37

3YAg2448

3

2445×4880

11.5 X3

6~50

30
