High frequency vibrating fine screen

Share:

High-frequency vibrating fine screen is an ideal screening equipment to realize wet classification, dewatering, demedium, secondary pulping and material cleaning of medium and fine-grained minerals and fine powder materials in mineral processing plants. It is widely used in industries such as mineral processing, coal preparation, mineral processing, chemical raw materials and food processing.

product details

Industry solutions:

l The screening machine is divided into single screen and single channel, single screen and multiple channels, and multiple screens superimposed with multiple channels for feeding.

l The screening machine is driven by a vibration motor, which is light in weight, reliable in operation, low in noise and requires little maintenance.

l The motion trajectory is a straight line.

l The vibration frequency is 20 Hz ~ 50Hz; the amplitude is 0.5 ~ 3mm.

l The installation inclination angle of the screen surface is in the range of -5° to 25°, which is determined according to the screening requirements of different materials.

l It can be equipped with polyurethane fine mesh, which has high opening rate, wear resistance, and does not block holes. It can also be equipped with stainless steel wire woven fine composite mesh.

          l Multi-screen superimposed multi-channel feeding high-frequency screen increases the production capacity of the system and achieves the maximum screening capacity and work efficiency with the smallest floor space, the simplest system pipeline connection, and the lowest engineering cost and operating cost.


High frequency vibrating fine screen                                                            Technical Parameters

Screen model

Layer No.

Screening surface size(mm)

Screen area(m²)

Opening size(mm)

Power(Kw)

2ZJG1017

2

1080X1700

1.7X2

0.045-0.2

1.8X2

3ZJG1017

3

1080X1700

1.7X3

0.045-0.2

1.8X2

4ZJG1017

4

1080X1700

1.7X4

0.045-0.2

1.8X2

5ZJG1017

5

1080X1700

1.7X5

0.045-0.2

1.8X2

2ZJG1220

2

1240X2000

2.4X2

0.045-0.2

2.8X2

3ZJG1220

3

1240X2000

2.4X3

0.045-0.2

2.8X2

4ZJG1220

4

1240X2000

2.4X4

0.045-0.2

2.8X2

5ZJG1220

5

1240X2000

2.4X5

0.045-0.2

2.8X2

High frequency vibrating fine screen

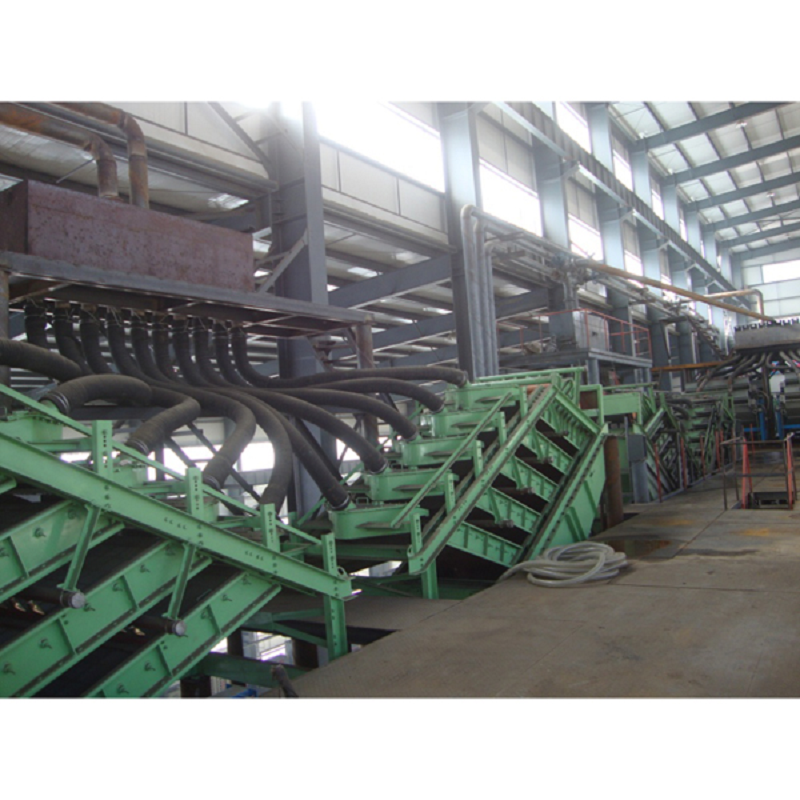

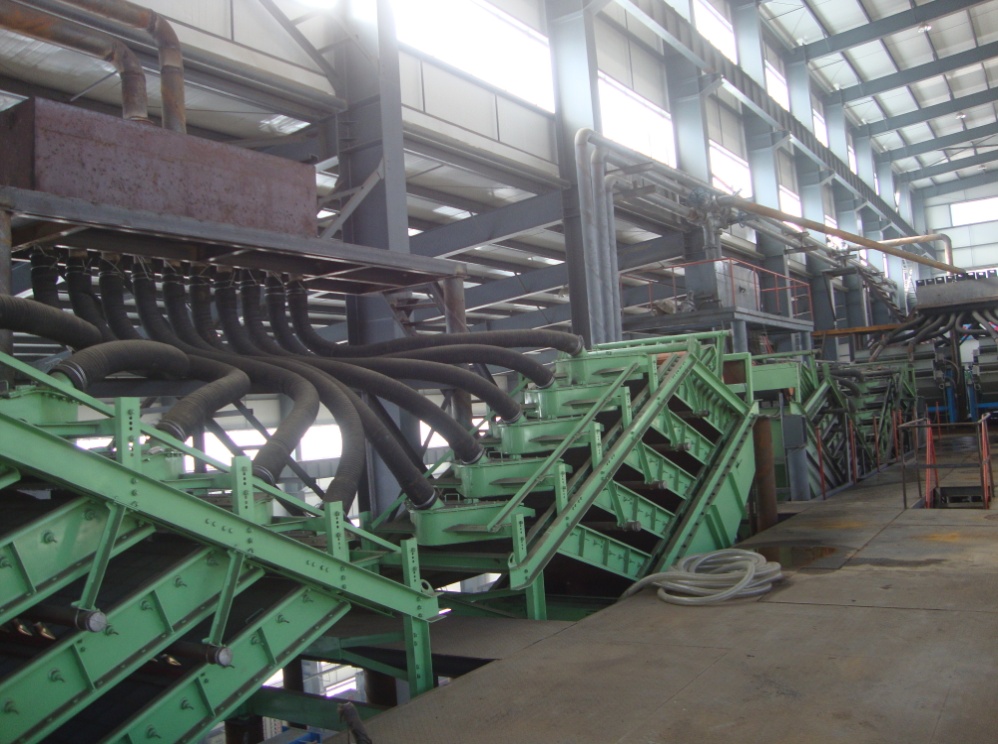

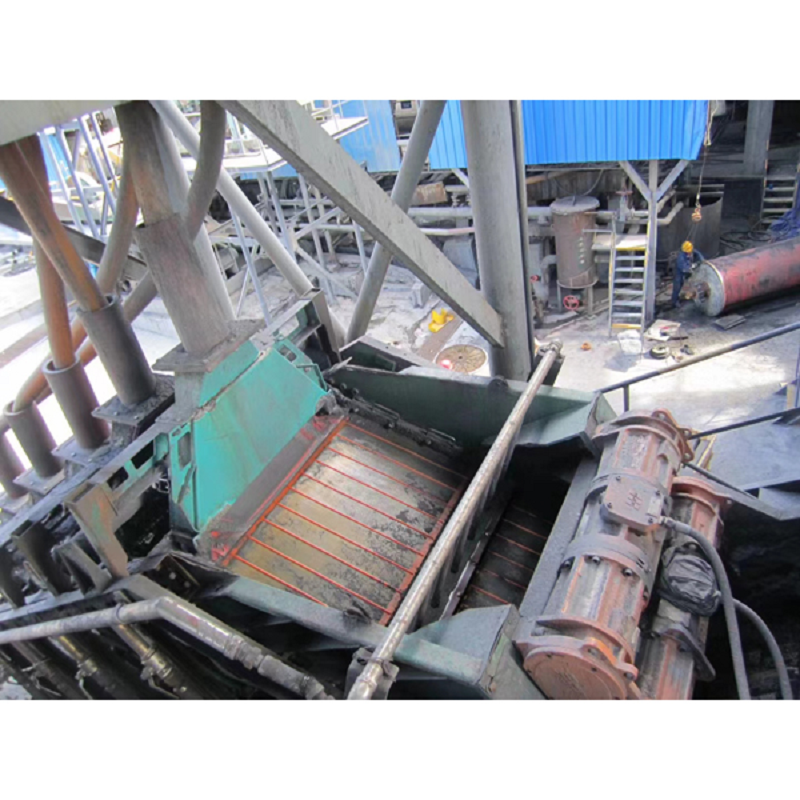

ZJG-1220/5 high frequency vibrating fine screen site

High frequency vibrating fine screen

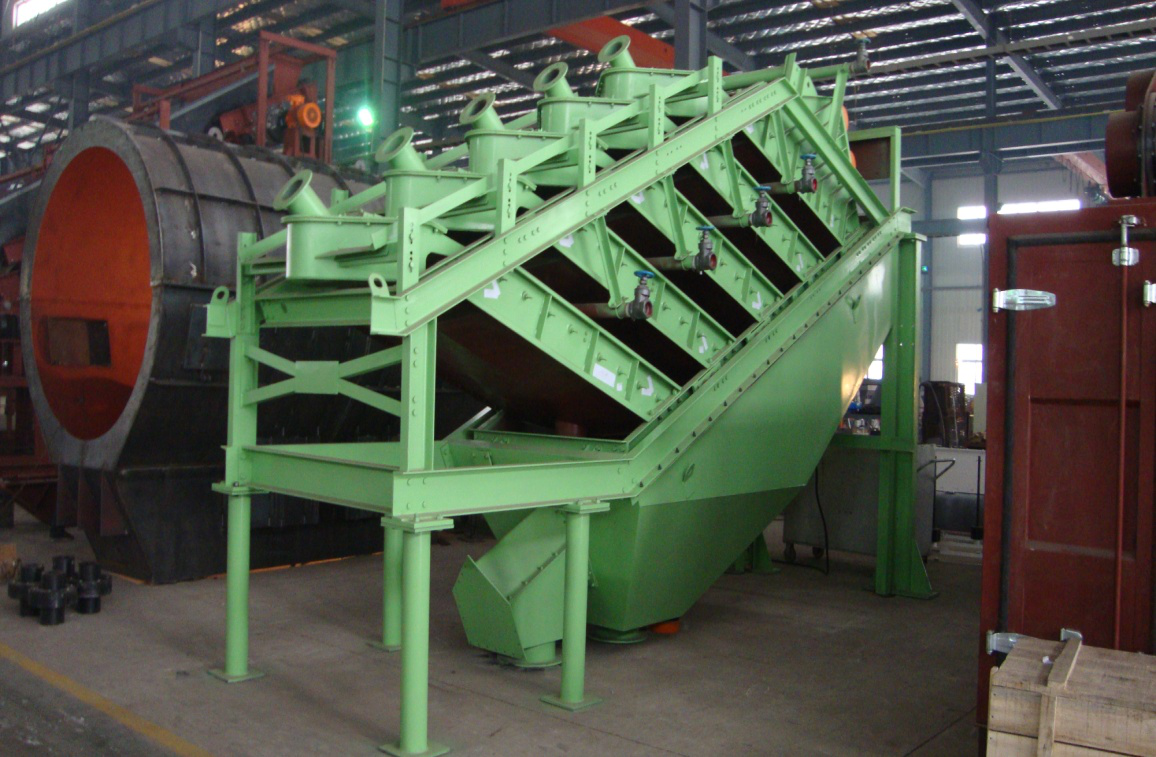

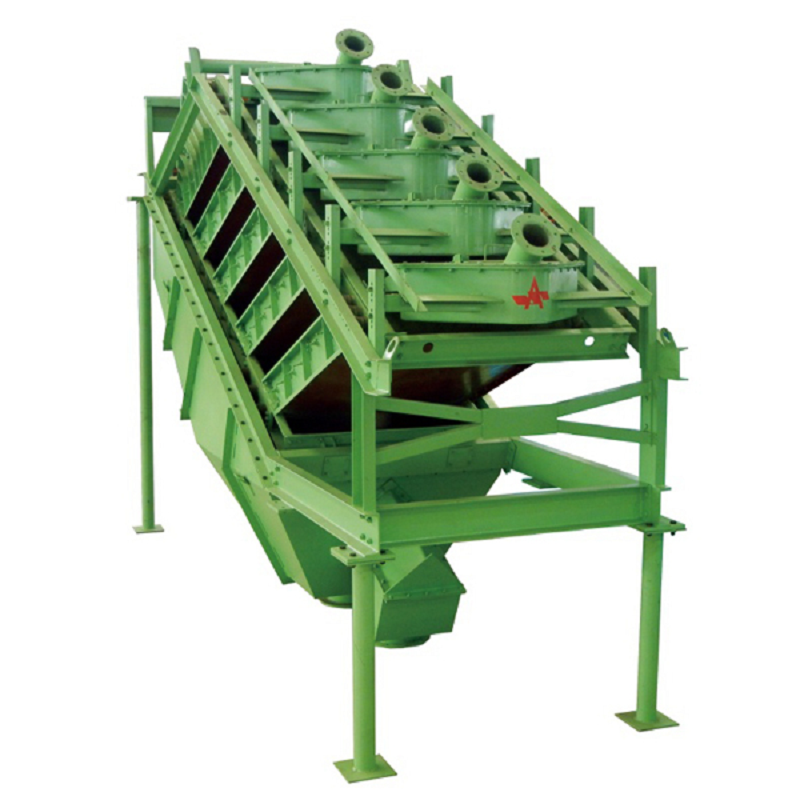

 ZJG-1220/4 high frequency vibrating fine screen

High frequency vibrating fine screen

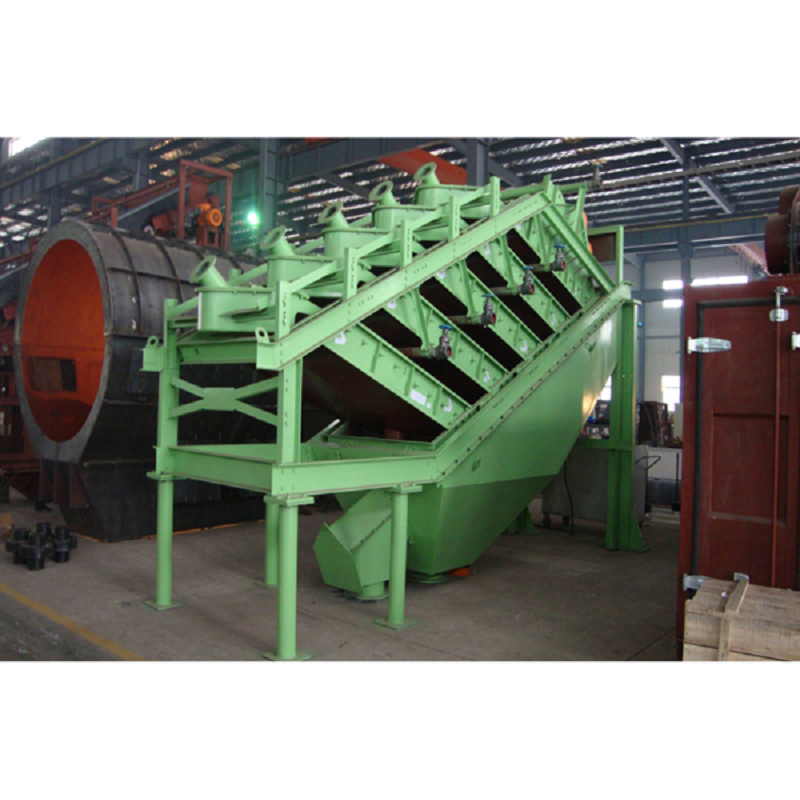

ZJG-1220/5 high frequency vibrating fine screen

High frequency vibrating fine screen
