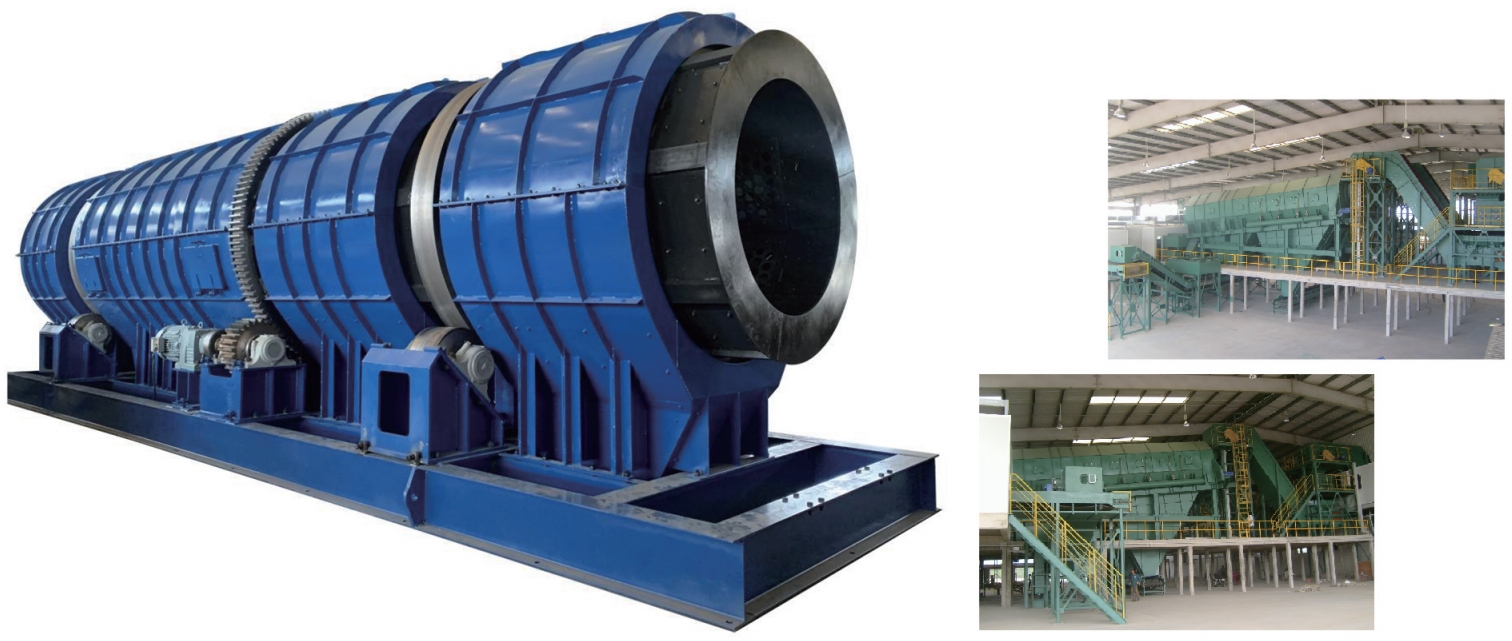

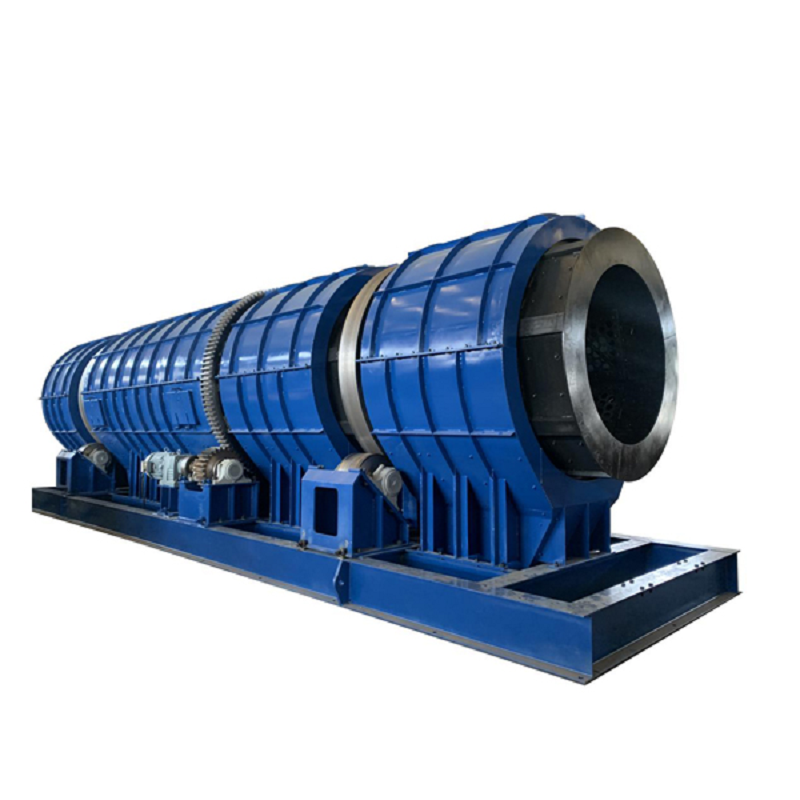

Cylindrical screens can be used for ore washing, desliming, or classification of medium and fine-grained materials, or used in the construction industry to screen and clean gravel and sand. It can also be used to classify construction waste and decoration waste after crushing.
product details
Industry solutions:l Adopting the rolling conveying principle, the friction coefficient is small, the wear is light, and the openings are not easy to be blocked.
l The roller support adopts an integral structure, runs smoothly, does not vibrate, and has low noise.
l The internal trommel mesh accessories adopt a split design, with a simple structure and fast and convenient replacement and maintenance.
l The trommel body adopts an effective fully sealed structure, which prevents dust and pollution.
l Safe and reliable operation, using reduction transmission, high transmission efficiency, small belt power, low energy consumption, and obvious energy saving effect.
l Different mesh materials and opening sizes can be used according to customer requirements, with high screening efficiency, long service life and low maintenance cost.
Technical Parameters
Screen model | Layer No. | Screening surface size(mm) | Screen area(m²) | Opening size(mm) | Power(Kw) |
GTS1230 | 1 | φ1200×3000 | 11.3 | 5-100 | 2×5.5 |
GTS1530 | 1 | φ1500×3000 | 14.1 | 5-100 | 4×5.5 |
GTS1540 | 1 | φ1500×4000 | 18.8 | 5-100 | 4×5.5 |
GTS1560 | 1 | φ1500×6000 | 28.3 | 5-100 | 4×5.5 |
GTS1840 | 1 | φ1800×4000 | 22.6 | 5-100 | 4×5.5 |
GTS1860 | 1 | φ1800×6000 | 33.9 | 5-100 | 4×5.5 |
GTS1880 | 1 | φ1800×8000 | 45.2 | 5-100 | 4×7.5 |
GTS2040 | 1 | φ2000×4000 | 25.1 | 5-100 | 4×7.5 |
GTS2060 | 1 | φ2000×6000 | 37.7 | 5-100 | 4×7.5 |
GTS2080 | 1 | φ2000×8000 | 50.2 | 5-100 | 4×7.5 |
GTS24240 | 1 | φ2400×24000 | 165.8 | 5-100 | 4×30 |
GTS2580 | 1 | φ2500×8000 | 62.8 | 5-100 | 4×9.2 |
Technical Parameters
Screen model | Layer No. | Screening surface size(mm) | Screen area(m²) | Opening size(mm) | Power(Kw) |
GT1230 | 1 | φ1200×3000 | 11.3 | 2-20 | 5.5 |
GT1530 | 1 | φ1500×3000 | 14.1 | 2-20 | 7.5 |
GT1540 | 1 | φ1500×4000 | 18.8 | 2-20 | 7.5 |
GT1560 | 1 | φ1500×6000 | 28.3 | 2-20 | 11 |
GT1840 | 1 | φ1800×4000 | 22.6 | 2-20 | 11 |
GT1860 | 1 | φ1800×6000 | 33.9 | 2-20 | 15 |
GT1880 | 1 | φ1800×8000 | 45.2 | 2-20 | 15 |
GT2040 | 1 | φ2000×4000 | 25.1 | 2-20 | 22 |
GT2060 | 1 | φ2000×6000 | 37.7 | 2-20 | 22 |
GT2080 | 1 | φ2000×8000 | 50.2 | 2-20 | 30 |
