The Difference between Linear Vibrating Screen and Circular Vibrating Screen

Mar. 16, 2021

Circular vibrating screens vs. linear vibrating screens

Between circular and linear vibrating screens, you may find one perfectly suited to your unique application and the other unhelpful. As machinery requires investment and introduces new levels of quality to your product line, you should make an effort to choose the right product from the outset. Read more to find out the key differences between the two types.

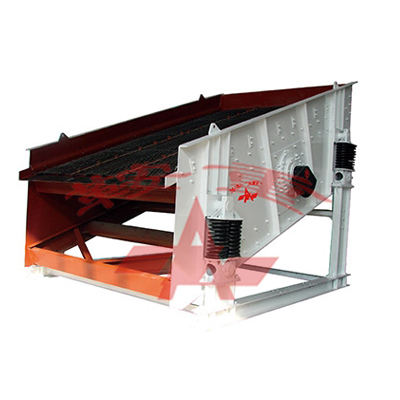

Circular Vibrating Screen

Circular Vibrating Screen

Circular vibrating screens

Although both types of vibrating screens work on a similar principle, movement is the main difference. Generally, circular vibrating screens are more popular and have a more complex motion cycle and operation. Several components allow this equipment to operate properly.

Screen body

Screen or sieve

Vibrating source

Basic frame

Triangular belt

Electric motors

Driver eccentric

More (depending on model)

The driver's eccentric wheel moves thanks to the electric motor. It rotates rapidly by means of a triangular belt with centrifugal force, which drives the sieve in a circular motion. The material on the screen is affected by the pulsation and therefore the screen is thrown in a throwing motion over the screen surface. The size of the material decreases as it passes through the screen. The steep throwing angle prevents the mesh from being blinded and allows for maximum efficiency.

As the circular sifter is available in a variety of models, it can be used to screen wet, dry, coarse or fine particles, which makes it more suitable for a wider range of applications. Several industries that rely on this type of machine for screening are mineral processing plants, mining, food and fertiliser manufacturers, coal processing plants, steel plants and many more.

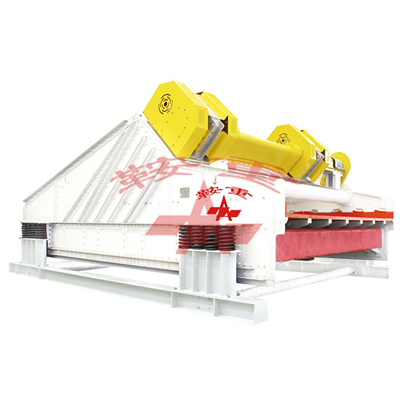

Linear Vibrating Screen

Linear Vibrating Screen

Linear vibrating screens

The main difference between a linear vibrating screen is that its motion is linear. It uses a vibrating motor to throw the material in an upward and forward linear motion. These models usually work with a double vibrating motor which runs in a synchronised manner and causes centrifugal forces to move parallel to the motor channels. The centrifugal force and gravity help to throw the material in the direction in which it is moving, thus effectively reducing its size and classifying it.

Linear vibrating screens are available in single or double deck form and in sizes up to four metres wide and nine metres long. They are renowned for their robustness, stability and ease of maintenance. Typical applications include primary and secondary sorting, slurrying, desludging, washing, dewatering and hot material screening.
