  • Wide Screen Surface Forced Synchronous Linear Screen
  • Wide Screen Surface Forced Synchronous Linear Screen

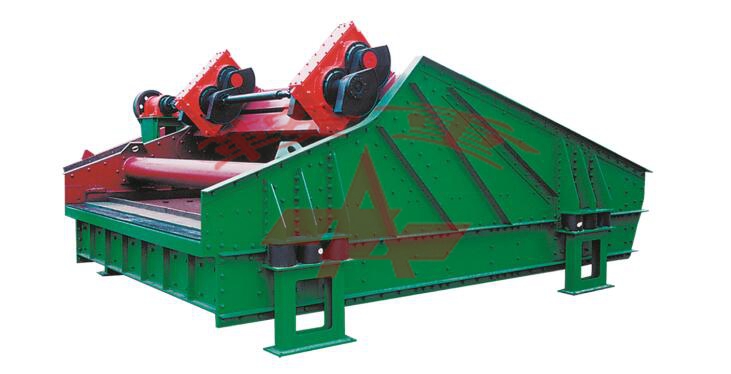

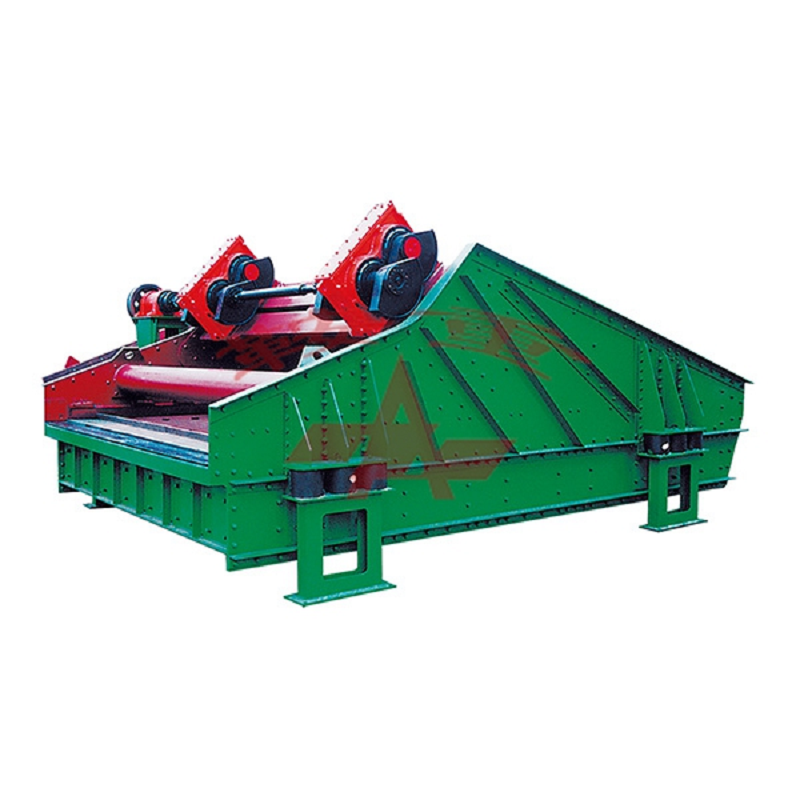

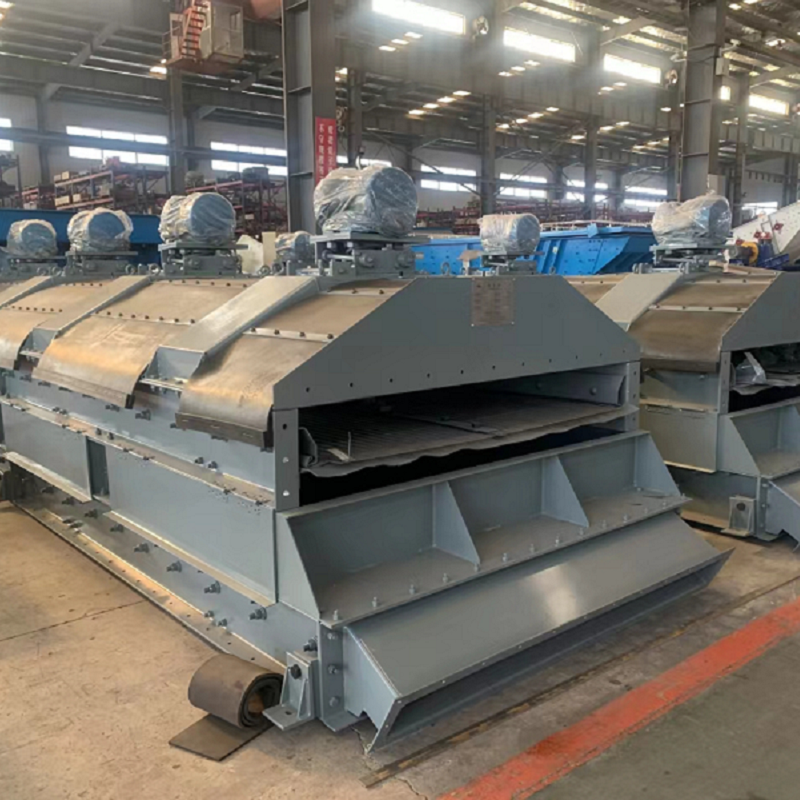

Wide Screen Surface Forced Synchronous Linear Screen

Share:

Large linear vibrating screens with wide screen surfaces are mainly used for classification and dewatering after SAG Mill, ball milling, and HPGR in major mines and mineral processing plants, which can also be used for tailings dry discharge ,etc., and are also used in dewatering, demedium and desliming of medium coal, clean coal, gangue and raw coal in coal washing plants.

product details

Industry solutions:


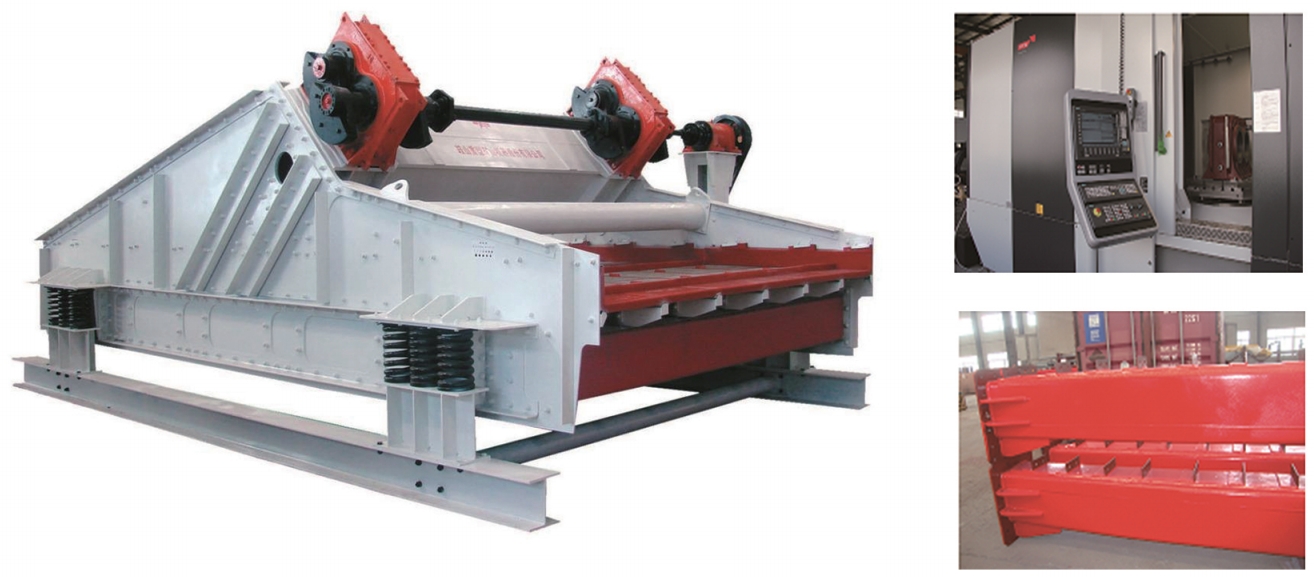

lThe vibration parameters of the vibrating screen have reached the international advanced level:double amplitude 2A=9mm, vibration frequency n=850-900r/min, vibration intensity reaches 3.7g-4.9g and has high screening efficiency and large capacity.

lThe lower cross beams of the screen surface, the screen plate support beams, the back baffle, the side plates, the reinforcements on the side plates, and the side plates are all made of Q245R plates, and their yield strength is greater than 245Mpa.

lHelical gear driven forced synchronous box-type vibrator, stable and reliable operation, low noise, stable projection angle, constant material movement, uniform material layer thickness, and no local accumulation phenomenon.

lThe bearing adopts a special bearing for vibration machinery. Its lubrication method adopts thin oil gear splash lubrication. The formation of oil mist makes the oil film on the surface of the bearing rolling element uniform and fully lubricated. The bearing is not easy to heat up and has a long service life.

lThe overall assembly of the screen frame adopts cold riveting technology (ring-groove rivet connection) to avoid uneven assembly stress and vibration loosening. The reinforcements on the side plates are steel plate bending parts to ensure their mechanical properties.The low carbon steel double I-shaped structure is welded and formed with planed grooves, which has strong impact resistance, bending resistance and good craftsmanship. The lower cross beam of the screen frame adopts a rectangular square beam structure, which has high strength and large bending section coefficient under the same conditions. The bending moment is small and the comprehensive mechanical life is long.

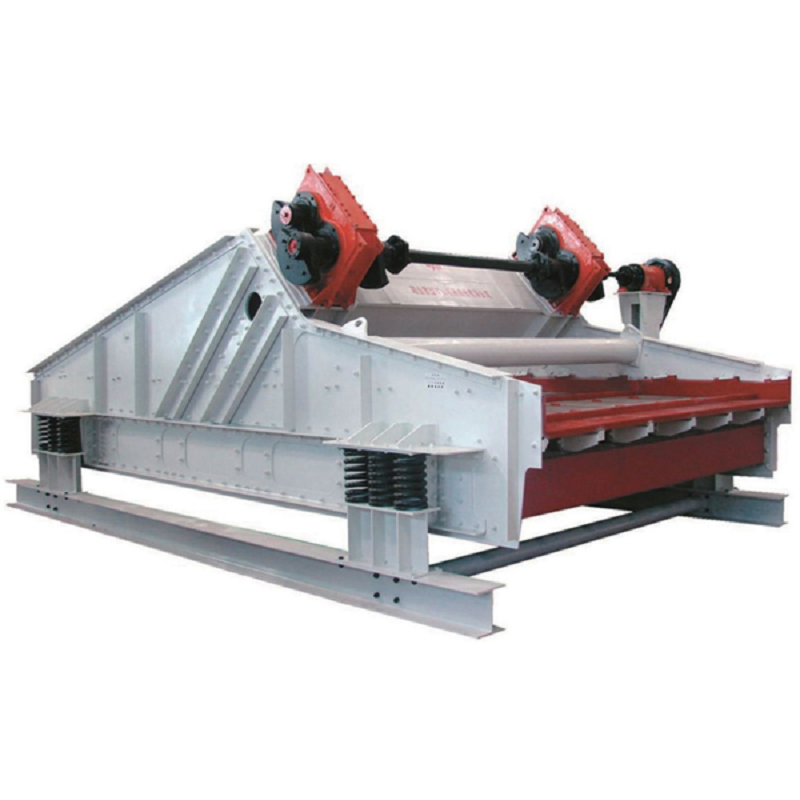

Wide Screen Surface Forced Synchronous Linear Screen


                        Technical Parameters

Screen model

Layer No.

Screening surface size(mm)

Screen area(m²)

Opening size(mm)

Power(Kw)

ZKK1536

1

1500×3600

5.4

0.5~25

11

ZKK1548

1

1500×4800

7.2

0.5~25

18.5

ZKK1848

1

1800×4800

8.64

0.5~25

18.5

ZKK1861

1

1800×6100

10.98

0.5~25

22

ZKK2048

1

2000×4800

9.6

0.5~25

18.5

ZKK2052

1

2000×5200

10.4

0.5~25

22

ZKK2061

1

2000×6100

12.2

0.5~25

22

ZKK2161

1

2100×6100

12.81

0.5~25

22

ZKK2436

1

2400×3600

8.64

0.5~25

18.5

ZKK2442

1

2400×4200

10.08

0.5~25

22

ZKK2445

1

2400×4500

10.8

0.5~25

22

ZKK2448

1

2400×4800

11.52

0.5~25

30

ZKK2452

1

2400×5200

12.48

0.5~25

30

ZKK2461

1

2400×6100

14.64

0.5~25

30

ZKK3036

1

3000×3600

10.8

0.5~25

30

ZKK3055

1

3000×5500

16.5

0.5~25

45

ZKK3061

1

3000×6100

18.3

0.5~25

45

ZKK3073

1

3000×7300

21.9

0.5~25

55

ZKK3636

1

3600×3600

12.96

0.5~25

30

ZKK3642

1

3600×4200

15.12

0.5~25

30

ZKK3645

1

3600×4500

16.2

0.5~25

45

ZKK3648

1

3600×4800

17.28

0.5~25

45

ZKK3652

1

3600×5200

18.72

0.5~25

45

ZKK3661

1

3600×6100

21.96

0.5~25

55

ZKK3675

1

3600×7500

27

0.5~25

55

2ZKK1848

2

1800×4800

8.64

Upper 3-50

Lower 0.5-13

30

2ZKK2148

2

2100×4800

10.08

Upper 3-50

Lower 0.5-13

30

2ZKK2161

2

2100×6100

12.81

Upper 3-50

Lower 0.5-25

30

2ZKK2448

2

2400×4800

11.52

Upper 3-50

Lower 0.5-25

37

2ZKK2452

2

2400×5200

12.48

Upper 3-50

Lower 0.5-25

30

2ZKK2461

2

2400×6100

14.64

Upper 3-50

Lower 0.5-25

37

2ZKK3048

2

3000×4800

14.4

Upper 3-50

Lower 0.5-25

45

2ZKK3052

2

3000×5200

15.6

Upper 3-50

Lower 0.5-25

55

2ZKK3061

2

3000×6100

18.3

Upper 3-50

Lower 0.5-25

55

2ZKK3661

2

3600×6100

21.96

Upper 3-50

Lower 0.5-25

75
