  • Single cylinder hydraulic cone crusher

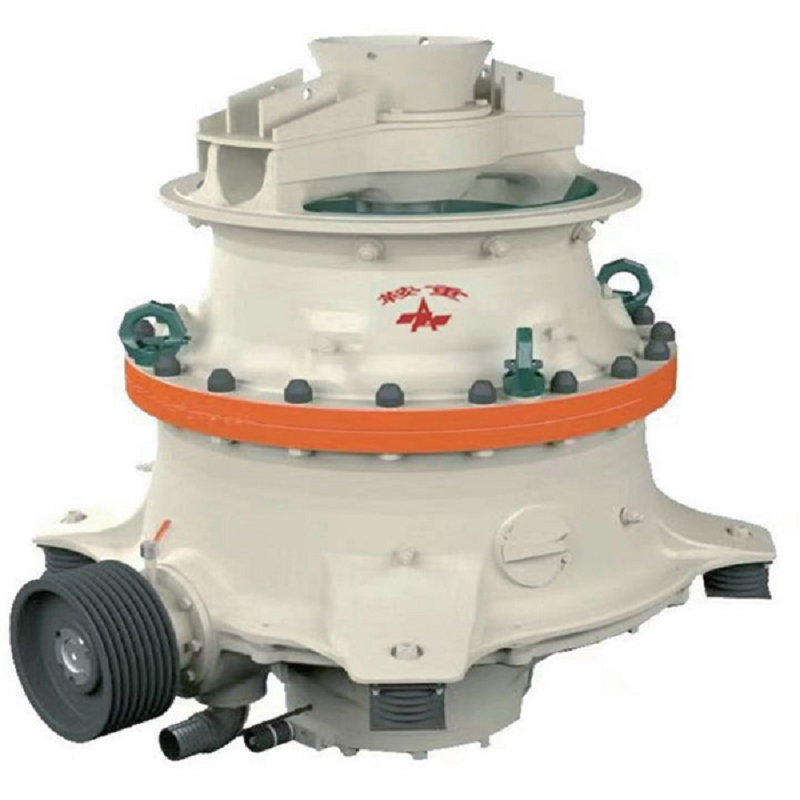

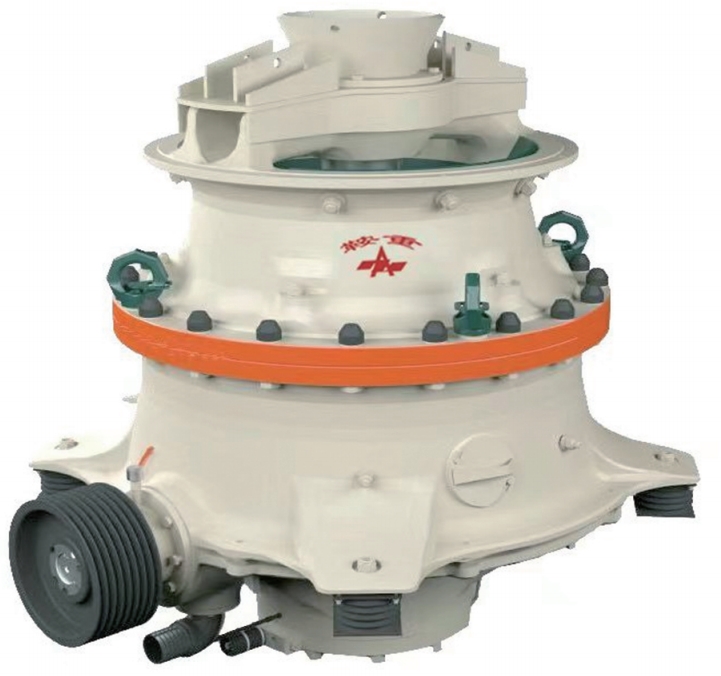

Single cylinder hydraulic cone crusher

Share:

It is widely used in metal and non-metal minerals, cement, sand and gravel, metallurgy and other industries. It is an ideal crushing equipment suitable for medium and fine crushing of various ores and rocks with Platt hardness below 16. It is widely used in crushing operations of various types of high hardness and high abrasion resistance ores.

product details

Industry solutions:

lTransmission gear

Large and small spiral bevel gears can achieve high torque and high energy efficiency transmission.

lAdjustable eccentricity

The combination of the eccentric copper sleeve and the eccentric sleeve can easily achieve multiple eccentricity settings by installing keys in different keyways of the eccentric copper sleeve to adapt to the requirements of different ores and working conditions, thereby achieving materials to be packed into the material bin for feeding and optimizing the particle size curve of crushing product and production capacity.

lCurved crushing cavity

According to the principle of material laminated crushing and the wear characteristics of the cavity wall, the cavity shape is designed as a curve, so that the crusher has the advantages of large output, high product quality, and low wear cost.

lOverload protection system

Through hydraulic and electrical protection, the main machine is protected to minimize damage to the host during overload.

lAutoRun automatic control system

It realizes functions such as overload protection, over-iron protection, automatic compensation for liner wear, etc., and maximizes the effectiveness of the crusher by filling the bin with materials.

lReliable hydraulic lubrication system

The lubrication system and hydraulic system are modularly designed and operate independently. By interlocking with the main motor, the oil temperature, flow, pressure, power, and abnormal power supply are monitored to protect the main machine.


Single cylinder hydraulic cone crusher


                               Technical Parameters

Crusher specifications

SC2

SC3

HC2

HC3

HC4

Maximum diameter of moving cone(mm)

940

1120

940

1200

1400

Maximum feeding size(mm)

360

360

185

215

275

Feeding port opening size(mm)

650

390

200

250

300

Mine discharge range(mm)

2554

29~51

1338

1644

16~51

Motor model

Y315L1-4

Y355M1-4

Y315L1-4

Y355M1-4

Y355L2-4

Motor power(Kw)

160

250

160

250

315

Production capacity(t/h)

120~210

200~400

60~200

100~350

160~580

Dimensions(mm)

5000×2400×5550

4374×2280×3296

5000x2400X5120

4124×2264×3032

4770×2798×3601
