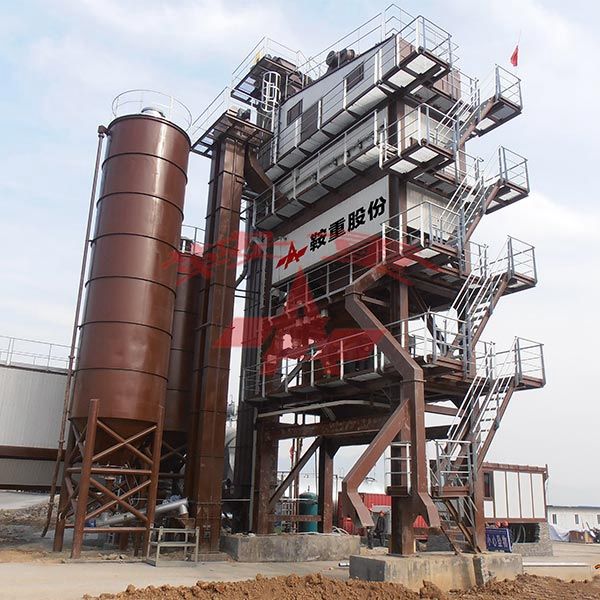

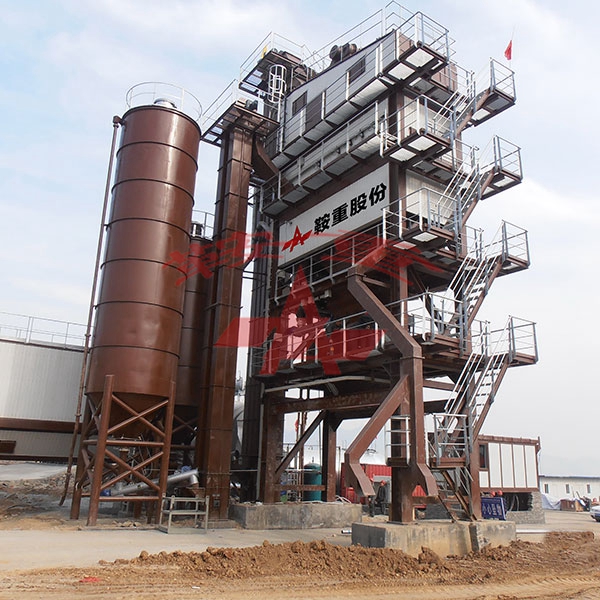

The LB asphalt mixing plant is produced independently by our company and we offer wide range specifications from model 1000 to model 4000, which can be equipped with different structures precipitator and different end product bins according to customers' requirements.
product details
Industry solutions:
The LB asphalt mixing plant is produced independently by our company and we offer wide range specifications from model 1000 to model 4000, which can be equipped with different structures precipitator and different end product bins according to customers' requirements. LB asphalt mixing plant has the characteristics such as stable performance, high reliability, high rate of qualified product, low breakdown rate, etc. which can meet requirements of all kinds of high-quality asphalt mixing, it has received unanimous appraisal from our old customers.
The main Technical Parameters of LB Series Asphalt Mixing Plant
| Model | LB-1000 | LB-1500 | LB-2000 | LB-3000 | LB-4000 |
| The Volume of Cold Aggregate Bin（m3） | 60-80 | 90-120 | 120-160 | 180-240 | 240-320 |
| Max.Fuel Consumption of Burner(kg/h) | 518 | 800 | 1200 | 1800 | 2400 |
| Filtering Area of ag Dust-extractor（m3） | 338 | 474 | 577 | 880 | 1027 |
| Measuring Accuracy | ≤±2.5% | ≤±2.5% | ≤±2.5% | ≤±2.5% | ≤±2.5% |
| Output of Mixer(kg/batch) | 1000 | 1500 | 2000 | 3000 | 4000 |
| Total Volume of Powder Bin(single bin with double rooms) | 30 | 30 | 40 | 50 | 62 |
| Total Motor Power(kw) | 245 | 274 | 376 | 638 | 696 |
