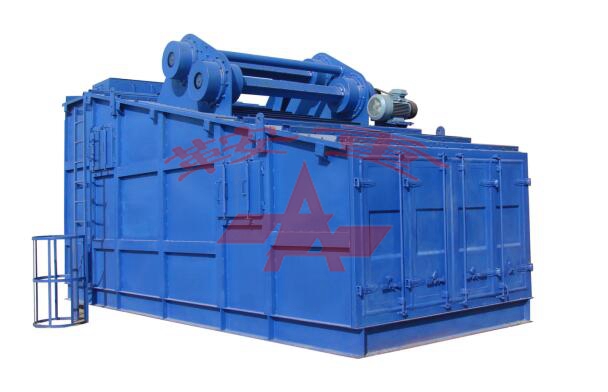

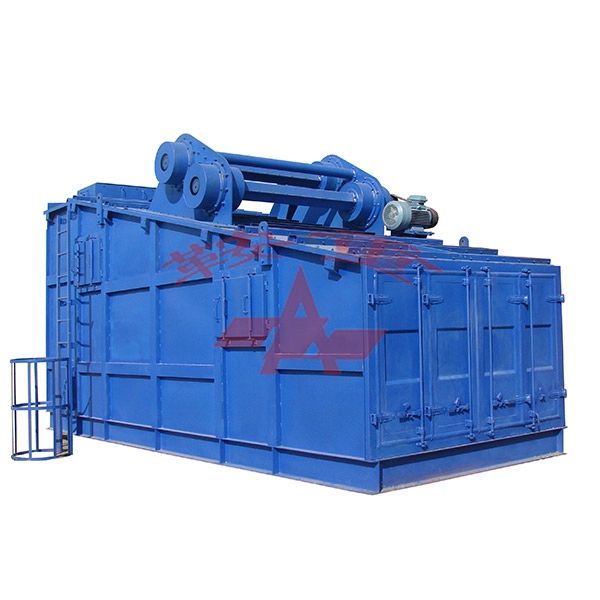

The series screen is the product developed by ourselves based on assimilating the advantages of the same trade screen mechanics at home and abroad to meet the development demand of market and be directed against the characteristic of asphalt concrete batch mixer.
product details
Industry solutions:1 Use
The series screen is the product developed by ourselves based on assimilating the advantages of the same trade screen mechanics at home and abroad to meet the development demand of market and be directed against the characteristic of asphalt concrete batch mixer. The screen has the advantages of durable construction, light weight, high capacity, operating ability, high credibility according to application in various areas for many years.
The screen is an ideal equipment applied asphalt concrete batch mixer, and can work at 180℃ feeding temperature.
2 Specification and technical characteristics

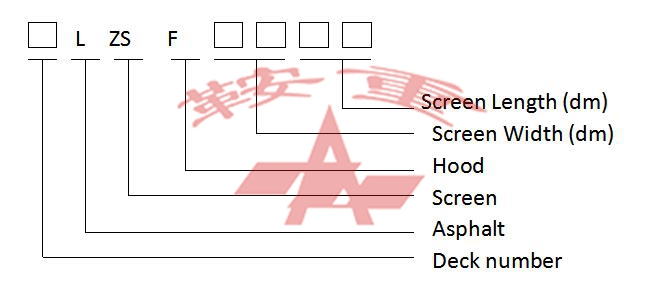

2.1 Symbol meaning
2.2 Specification
| Model | Screen Deck | Feed Size(mm) | Capacity(t/h) | Motor | ||||
| Number of Deck | Area(m²) | Opening Size(mm) | Mesh Structure | Model | Power | |||
| 5LZSF1840B | 5 | 29.7 | 5-40 | Woven Wire | ≤100 | 180-200 | Y160M-4 | 2×11 |
| 5LZSF2040 | 5 | 30.8 | 5-40 | Woven Wire | ≤100 | 180-200 | Y160M-4 | 2×11 |
| 5LZSF2050 | 5 | 39.6 | 5-40 | Woven Wire | ≤100 | 220-240 | Y160L-4 | 2×15 |
| 5LZSF2250 | 5 | 43.9 | 5-40 | Woven Wire | ≤100 | 240-260 | Y180M-4 | 2×18.5 |
| 5LZSF2256 | 5 | 49.2 | 5-40 | Woven Wire | ≤100 | 320-340 | Y180L-4 | 2×22 |
| 6LZSF2256 | 6 | 59.1 | 5-40 | Woven Wire | ≤100 | 320-340 | Y180L-4 | 2×22 |
| 6LZSF2656 | 6 | 73.9 | 5-40 | Woven Wire | ≤100 | 360-380 | Y200L-4 | 2×30 |
| Note: principle for selecting mesh: it should be 1-1.3 times of laboratory data; optimum size is 1.1-1.2 times of laboratory data | ||||||||
2.3 Technical characteristics: Referring to general assembly drawing.
