Home >> Products >> Crusher >> Rotor Centrifugal Crusher
  • PCL Series Rotor Centrifugal Crusher (sand making machine)

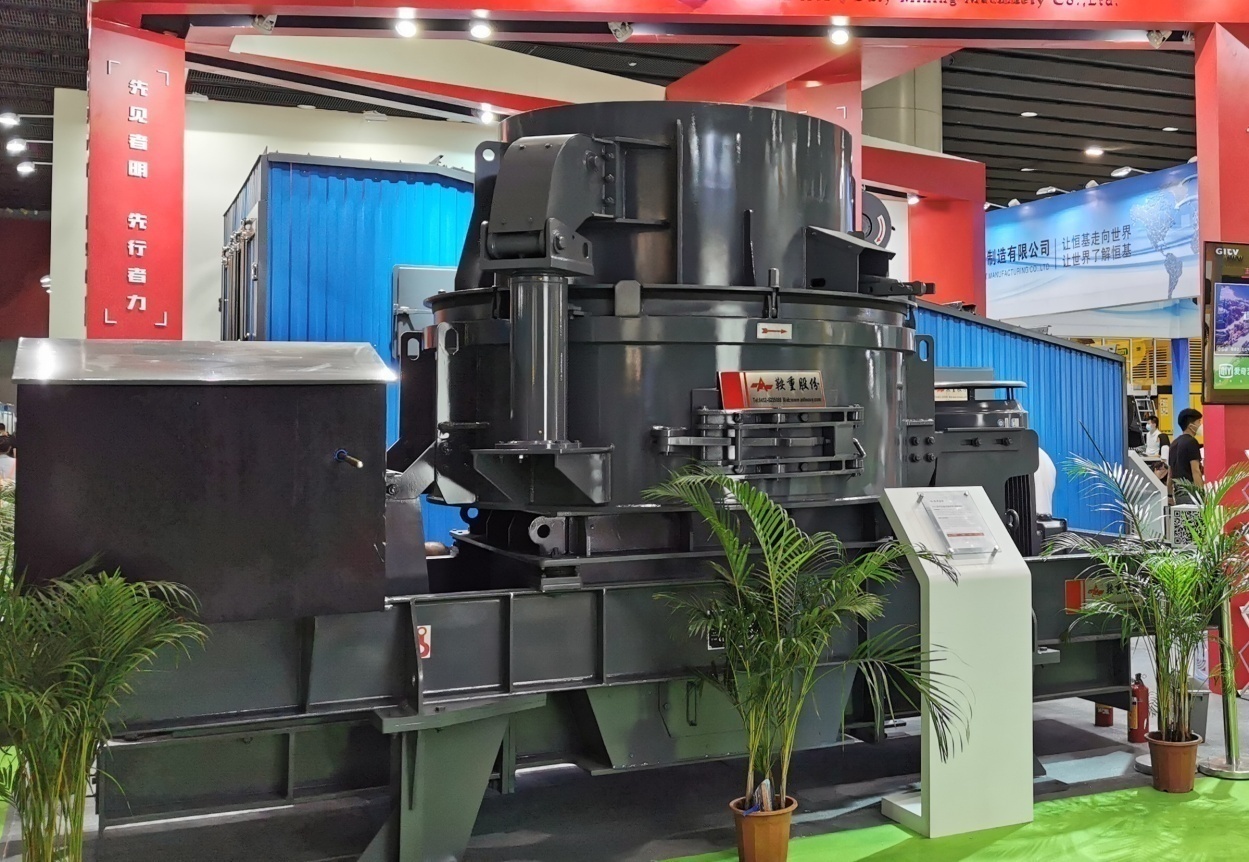

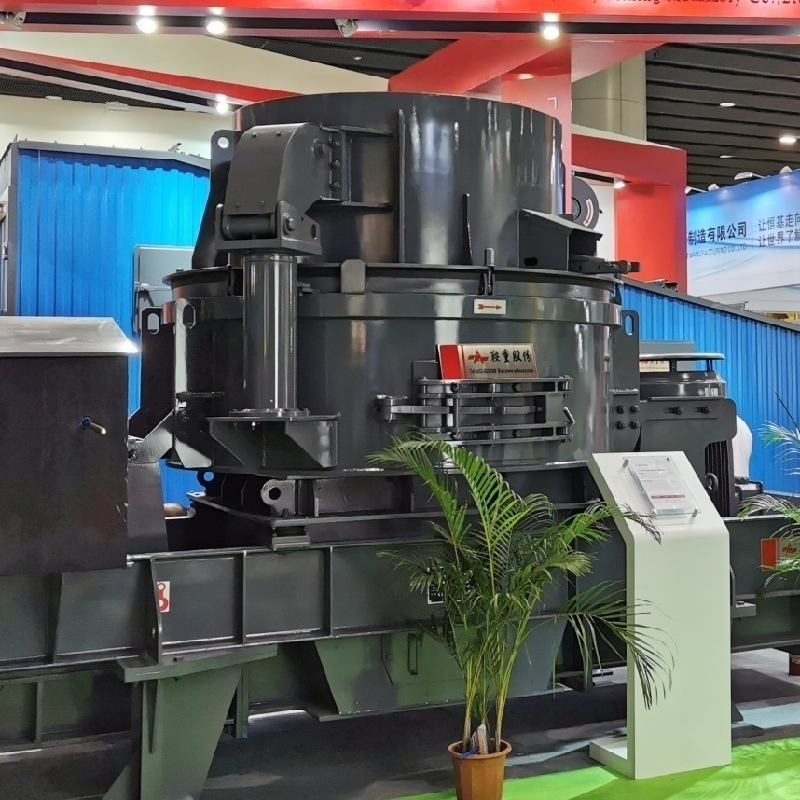

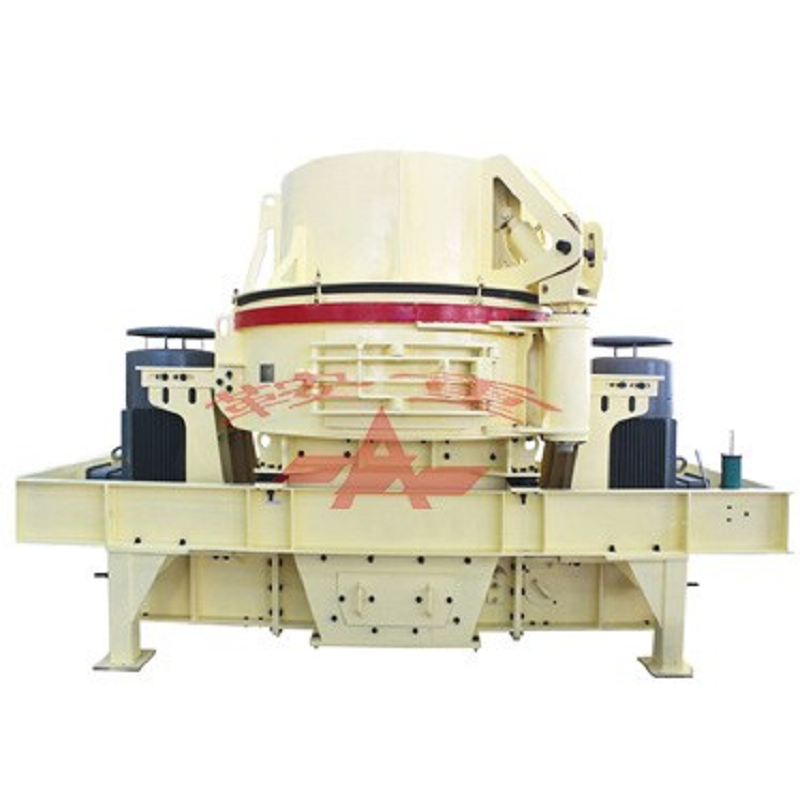

PCL Series Rotor Centrifugal Crusher (sand making machine)

Share:

Rotor centrifugal crusher, abbreviated as impact crusher, commonly known as sand making machine, is a kind of high-energy and low-consumption impact crusher with international advanced level.


product details

Industry solutions:


Rotor centrifugal crusher, abbreviated as impact crusher, commonly known as sand making machine, is a kind of high-energy and low-consumption impact crusher with international advanced level. Its performance plays an irreplaceable role in various ore fine crushing equipment, and is currently the best effective, practical and reliable stone crushing machine. It is widely used in metal and non-metal ores, cement, refractory materials, abrasives, glass raw materials, construction materials, artificial sand making, river pebbles, mountain rocks, etc.


PCL Series Rotor Centrifugal Crusher (sand making machine)

Main (product) features:



The PCL series rotor centrifugal crusher perfectly combines the unique rotor design with the effective and precise controlled bypass feeding system. This combination greatly improves the product capacity and quality. Moreover, the production cost and the consumption of wearing parts are reduced. The optimized design of the wearing parts of the PLC series vertical shaft impact crusher greatly improves the convenience of maintenance and reduces the replacement operation time. The perfect combination of automatic control and manual control systems minimizes the workload of equipment maintenance. The double-throwing combination of the rotor maximizes the wear time and protects the main body of the rotor from damage due to excessive wear. The secondary flash system with different speeds can completely control the particle shape and the particle size distribution of the discharged material.



Model

Max.feed size

RPM for

main shaft

Capacity(t/h)

Power(Kw)

Weight(kg)

PCL700

40

1500-2000

50-90

132

6260

PCL800

45

1300-1700

80-150

180

13629

PCL900

50

1000-1400

120-250

264

16790



Note:

The above-mentioned capacity refers to the capacity in the open circuit when crushing medium-hard and below materials with a bulk density of 1600kg/m3.

The capacity is related to the material characteristics of the crushed material, the feeding method, the feed size and the particle size composition.
