What should I do if the shaker Screen is damaged too quickly?

Jan. 10, 2020

Linear Vibrating Screen is an essential part of mobile crushing and screening equipment. It plays an important role in improving the output and quality of crushing and screening in the process of crushing and screening. The vibrating screen has the characteristics of simple structure, stable operation, high screening efficiency and large processing capacity.

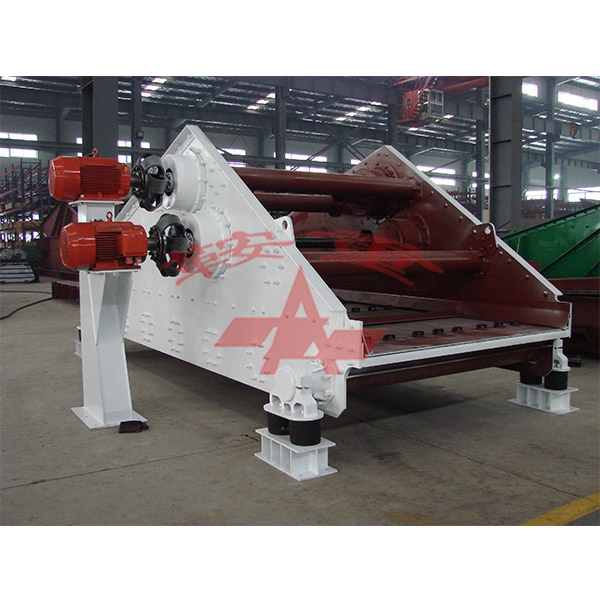

Linear Vibrating Screen

Linear Vibrating Screen

The vibrating screen is an indispensable part of mobile crushing and screening equipment. It plays an important role in improving the output and quality of crushing and screening in the process of crushing and screening. The vibrating screen has the characteristics of simple structure, stable operation, high screening efficiency and large processing capacity. In the vibrating screen, the screen is the main working part to complete the screening process, and it is also the main wearing part.

After the screen is worn or damaged in long-term operation, it will confuse materials at all levels and seriously affect the quality of the finished product; incorrect operation and use will also cause the screen to break too quickly. Today Ore Dressing Vibrating Screen Exporter will share with you the reasons and solutions for the excessive damage of the vibrating screen.

Screen material quality is not enough

If the quality of the screen cannot be reached, it will easily be damaged under the action of high strength, especially when screening large-scale materials such as large stones. If the quality of the screen does not meet the screening requirements of the material, Under high-intensity vibration and friction, it is easy to tear or wear.

Solution: The high-manganese steel wire woven screen with high elasticity and wear resistance should be selected, which is not only strong and durable, long life, but also has higher screening efficiency.

Screen plane is not tight enough

If the screen is not tensioned, during the operation of the equipment, high amplitude vibration will cause the screen to vibrate, which usually breaks or is damaged along the edge of the screen or the edge bead. At the same time, the screen is not level enough because the screen is not tensioned. It is easy to deform the screen, and the materials are easy to accumulate at a certain position, causing uneven force on the screen and damage.

Solution: When installing or replacing the screen, 3-4 people should work at the same time, lay the screen on the screen frame, then put the screen compression ring, and use the screws to symmetrically work in accordance with the vertical direction of the screen. Fix, after the screen is unfolded and evenly tightened, thread the screws into the screw holes and slowly tighten them one by one.

Screen pre-tensioning process is poor

The screen generally has an upper sieve layer and a lower force layer. The two layers are required to be in close contact. If the pre-tensioning process of the screen is poor, when the force layer at the bottom of the screen is tightened, the screen is layered. If it is not tightened, then the screen shakes too far when the screen is working, and the contact part with the screen frame cannot be pressed tightly, which is one of the reasons that cause the screen to be damaged too quickly.

Solution: Check the sieving progress of the screen frequently, check whether the screen is compacted, ensure the tension of the screen, reduce the pulsation power of the screen, and ensure that the sieve layer on the upper part of the screen and the force layer on the lower part are closely fitted. Our company also has Dewatering Vibrating Screen on sale, welcome to consult.
