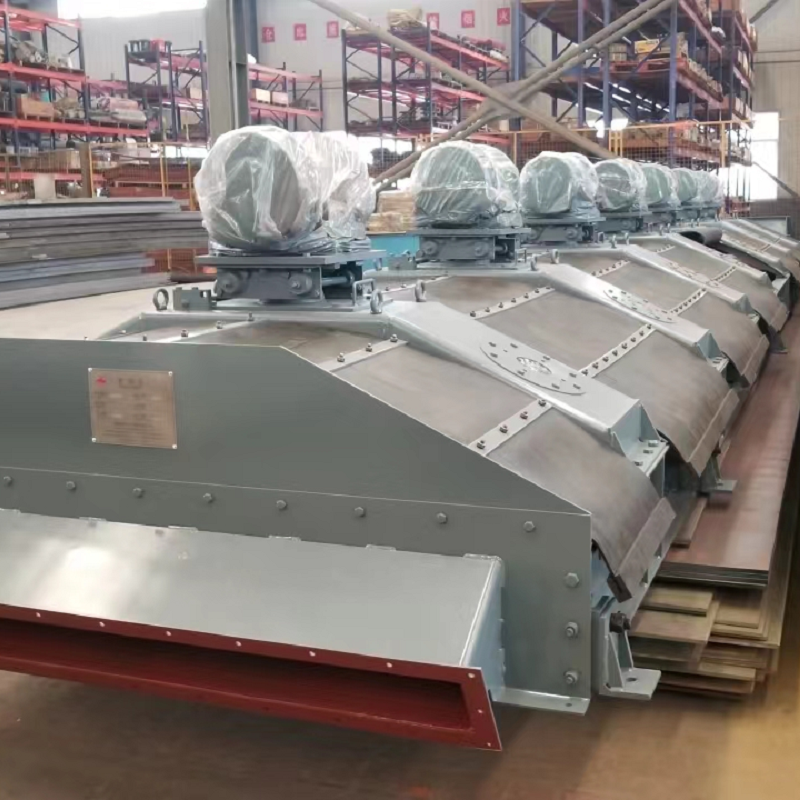

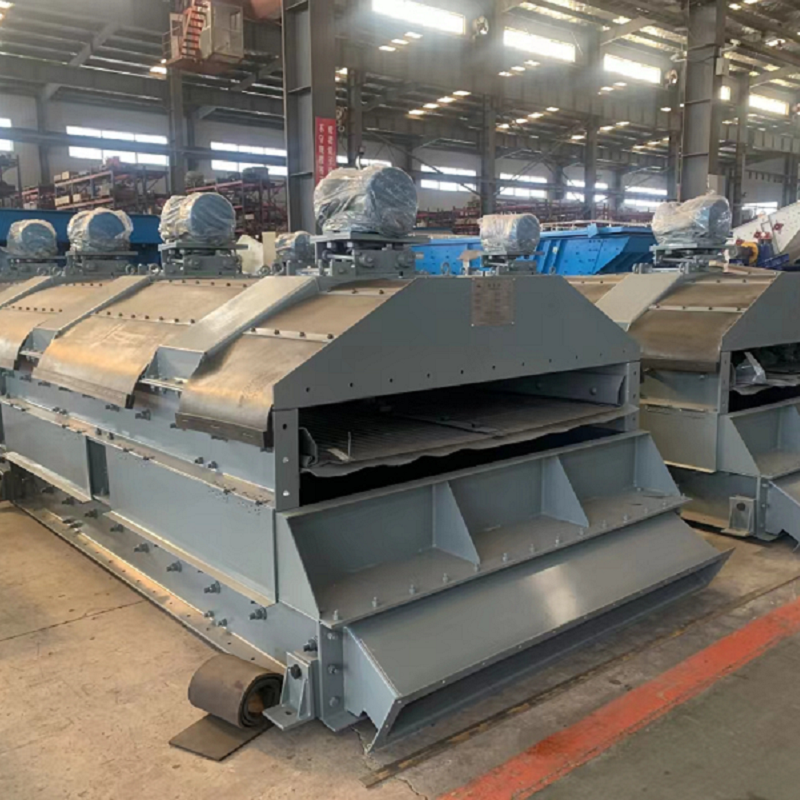

ZWS Series meshwork vibrating screen

Share:

ZWS series meshwork vibrating screen is suitable for classifying compound fertilizer and other loose and fine materials. The screen uses the vibrating motor as the vibrating source to pull the screen mesh to vibrate, so that the material is thrown forward and bounces forward to realize the classification of the new screen. The screen amplitude is adjustable, the screening efficiency is high, the production capacity is large, the dynamic load is small, the noise is low, and the maintenance is convenient.

product details

Industry solutions:

Uses and Features

ZWS series meshwork vibrating screen is suitable for classifying compound fertilizer and other loose and fine materials. The screen uses the vibrating motor as the vibrating source to pull the screen mesh to vibrate, so that the material is thrown forward and bounces forward to realize the classification of the new screen. The screen amplitude is adjustable, the screening efficiency is high, the production capacity is large, the dynamic load is small, the noise is low, and the maintenance is convenient.


Selection notice

When selecting, in addition to indicating the product model and quantity, it is also necessary to indicate the opening size, screen mesh material, and installation inclination. If the user does not require it, it will be supplied according to the installation drawing.

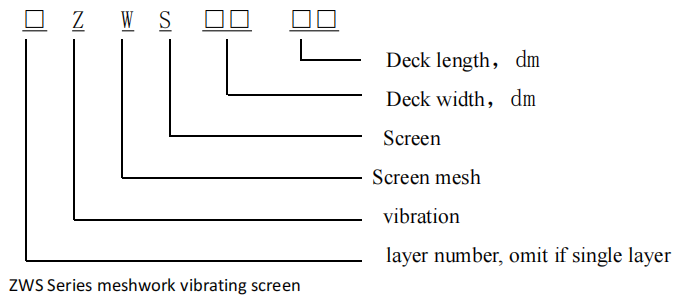

Model Meaning

ZWS Series meshwork vibrating screen


ModelScreen surfacevibrating frequency(Hz)amplitude(mm)Feeding size(mm)Capacity(t/h)MotorTotal weight(KG)
Layer numberArea(㎡)Opening size(mm)Screen mesh formModelPower(KW)
ZWS123013.610x40woven24.21.5-2.5≤6030-50YZO-17-40.85x21753
2ZWS123022x3.6upper:4x50lower:1.4x50woven24.21.5-2.5≤6030-50YZO-17-40.85x22484
ZWS124515.44x50woven24.21.5-2.5≤6045-60YZO-17-40.85x32841
2ZWS124522x5.4upper:4x50lower:1.4x50woven24.21.5-2.5≤6045-60YZO-17-40.85x33901
ZWS126017.24x25woven24.21.5-2.5≤6060-90YZO-17-40.85x43553
2ZWS126022x7.2upper:4x50lower:1.4x50woven24.21.5-2.5≤6060-90YZO-17-40.85x44895
ZWS166019.64x50woven241.5-2.5≤60100-120YZO-17-40.85x43712
2ZWS166022x9.6upper:4x50lower:1.4x50woven241.5-2.5≤60100-120YZO-17-40.85x44888
ZWS2452112.54x15woven241.5-2.5≤60150x180YZO-17-40.85x45813
2ZWS245222x12.5upper:4x50lower:1.4x50woven241.5-2.5≤60150x180YZO-17-40.85x48200
