Do you know the installation and debugging of Linear Vibrating Screen?

Dec. 02, 2019

ZKB is widely used in coal dressing, ore dressing, building materials, power and other industries. Dewatering Vibrating Screen is suitable for medium, fine-grained materials for dry, wet and desliming.

Adopt block eccentric self-synchronizing shaker; Adopt tape elastic coupling and universal joint coupling; Apply modern technology such as modal analysis to ensure the dynamic performance of the machine, optimize the structural design and improve the reliability and working life of the whole machine.

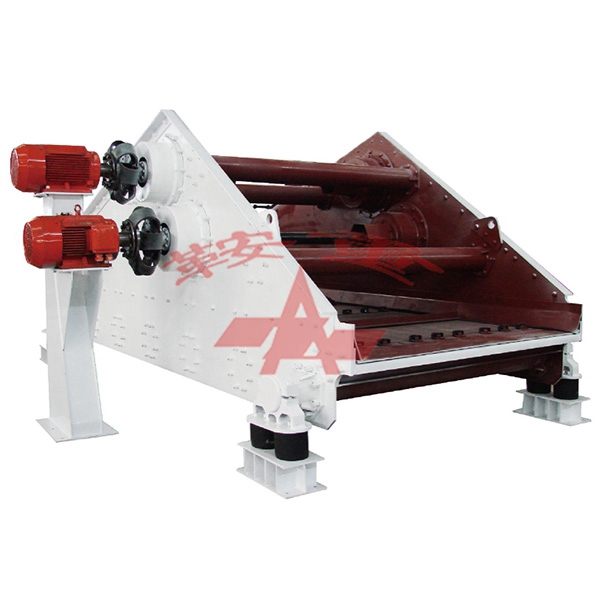

Linear Vibrating Screen

Linear Vibrating Screen

Linear Vibrating Screen installation and commissioning

(I) Installation:

Before the machine is installed, first check whether the parts are complete and damage according to the packing list.

Install the equipment according to the installation diagram. The foundation should have sufficient rigidity and strength to support the full dynamic and static loads of the vibrating screen.

⒊ Make sure that there is a minimum 75mm clearance between the screen box and non-moving parts such as hoppers and chute.

⒋When installing, the four corners of the screen box should be horizontal.

(II) Adjustment and trial operation:

⒈ The spring must be in a vertical state, and the spring upper support and the contact surface of the spring must be horizontal. After adjustment, the spring upper support is fixed on the trunnion of the screen box with bolts and then welded together.

⒉The no-load test run time is not less than 2 hours. After the no-load test run is qualified, it can be put into a load test run, and the load test run can be carried out according to the process test requirements.

High-frequency linear vibrating screen, it has a rectangular vibrating screen that easily sorts various materials. The high-frequency linear vibrating screen has high screening accuracy and large output. It is mainly used in chemical, building materials, metallurgy, medicine, food, mining, etc. In coal mining and other industries.

High frequency linear vibrating screen product description:

The high-frequency linear vibrating screen has a rectangular vibrating screen that easily sorts of various materials. The high-frequency linear vibrating screen has high screening accuracy and large output. It is mainly used in chemical, building materials, metallurgy, medicine, food, mining, coal mine, etc.

Model:

The high-frequency linear vibrating screen is divided into two models, one is an ordinary high-frequency linear vibrating screen, and the other is a high-frequency linear vibrating screen. The speed of the ordinary high-frequency the linear vibrating screen is 1500 revolutions per minute and the high-frequency linear vibration is The speed of the sieve is 3000 rpm. Due to the two different speeds, the vibration frequency of the linear vibrating screen will be different, and the screening efficiency will also be different.

The high-frequency linear vibrating screen is mainly divided by the level of the vibration motor. The higher the rotation speed of the vibration motor, the more the vibration frequency per minute, but the faster the material's moving track, thereby increasing a certain output.

Because the properties of each material are different, the high-frequency linear vibrating screen can adjust the corresponding amplitude according to the characteristics of the material. A reasonable amplitude will more effectively screen various materials.

We are Crushing Plant Vibrating Screen Manufacturer, welcome to consult.
