How to choose 4 tips for Vibrating Screen accessories

Oct. 31, 2019

  The advent of Vibrating Screen has greatly saved labor costs and production costs. How to choose vibrating screen accessories so that vibrating screens can achieve high quality and high-efficiency production requirements?

  The vibrating screen consists of a vibrating motor, a screen, a grid, a bearing, a bouncing ball, etc. Most of which are wearing parts, no matter which the damage will affect the screening effect and efficiency of the equipment, these parts are replaced frequently, as a Vibrating Screen Manufacturer, there is some information to share with you. This requires the vibrating screen used to select the appropriate spare vibrating screen accessories:

  First, select the vibrating screen accessories vibration source - vibration motor

  Vibration motor

  The vibration motor is the core component of the vibratory screening machine, which is the vibration exciter. The magnitude of the exciting force is determined by the size of the vibrating screen, the characteristics of the material, and the amount of processing. The weight of the screening machine and the amount of processing is different, so the size of the vibration motor is also different. If the exciting force is too large, the vibrating screening machine will crack due to excessive excitation force. On the other hand, if the exciting force is too small, the treatment effect will not be achieved, and material accumulation and blocking may occur.

  Second, how to choose vibrating screen accessories filter - screen.

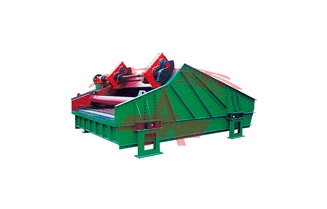

Linear Vibrating Screen

Linear Vibrating Screen

  Screen

  The screen is an indispensable accessory for the vibrating screen and is the part that is in direct contact with the material. Generally, the material of the vibrating screen is divided into 316L, 316, and 304. According to different materials, different screens should be selected. 316L (316) is used for acid and alkali resistance or for food and medicine screening. If there is no special requirement, the screening material can be selected from 304.

  Third, select vibrating screen accessories support equipment - bearings

  The bearing is also the support point of the vibration motor or the vibration exciter. It is one of the most critical components in the vibrating screen equipment. Its main function is to support the mechanical rotating body, reduce the friction coefficient and the rotation precision during the operation of the vibrating screening machine. Therefore, the following points should be noted when selecting bearings:

  1. Check for cracks, impurities, and rust inside and outside the bearing;

  2. There is no noise when turning, and there is a turbid oil stain on the surface;

  3. Check the clearance of the bearing, whether the size is within the error range;

  Fourth, select the vibrating screen accessories cleaning device - bouncing the ball

  Pinball

  The bouncing ball acts to clean up the clogged material in the vibrating screen. The bouncing ball is divided into 10, 15, 20, 25, 28, 30, and 40 by size. According to the material: rubber: used for the screening of general materials; silica gel: better than rubber, good wear resistance, not easy to fall off. Usually suitable for screening of food, medicine, and other materials. Our company also has a Linear Vibrating Screen on sale, welcome to come and consult.
